Specifications
Prod Model: |
MS-005 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Carton Size: |
1460 X 660 X 1250mm |
Driving Type: |
Electric |
Loading Type: |
Sitting Type |
Weight: |
122kgs |
Style: |
Midsize |
Product Description

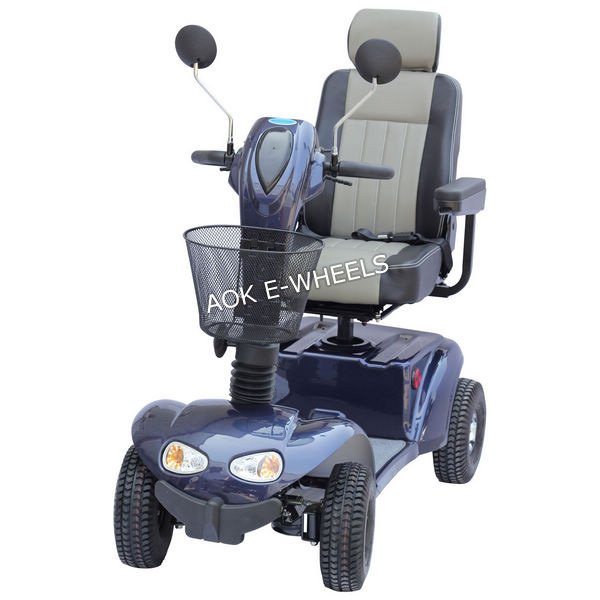

800W 24V New Taiwan Motor Electric Mobility Scooter with Nomal Seat,PG/Curtis controller
Specification
Specification Details: | Motor | 24V 800W (Made in Taiwan) |
Battery | 12V 55Ah x 2 lead acid battery |
Controller | PG/Curtis |
Charger | 24V 6A battery charger |
Charge time | 10~12h recommended |
Front Tyres | 12"*4.00-4 |
Rear Tyres | 12"*4.00-4 |
Performance & Main components
Performance & Main components: | Max. forward speed | 12.5km/h(adjustable) |
Max. backward speed | 6~8km/h(adjustable) |
Ground clearance | 90mm/3.54in. |
Turning radius | 1.7m/66.93in. |
Braking distance | 1.6m/63in. |
Climbing capability | 15° |
Packaging&Delivery
Packaging Details: | Weight capacity | 180kg/396.83lbs |
Gross weight | 122kg/268.96lbs |
Net weight | 112kg/246.9lbs(with 2 batteries) |
Battery weight | 17kg/37.48lbs x 2 |
Dimensions | 1460 x 660 x 1250mm |
57.48 x 25.98 x 49.21in. |
Delivery Details: | 40 days |
