Specifications
Prod Model: |
GBT800UTV-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
800CC UTV: |
Drive System2wd or 4WD |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
800CC |
Structure: |
4 |
Product Description

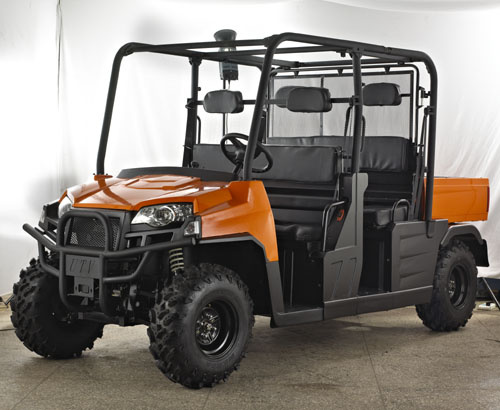

800CC UTV (GBTUTV-2)
ENGINE
Type800CC, Water cooled, Twin v-type cylinder, 8 valves
Bore x Stroke91mm× 61.5mm
Compression Ratio10: 1
Max. Power41kw(54.94HP)/6500rpm
Max. Torque90N. M/4500rpm
Steering system typeElectric Power Steering
IgnitionEFI
StartingElectrical
TransmissionCVT sub-transmission with high, low, park, neutral & reverse
Gear RatioL: 5.29; H: 2.886; R: 5.45
Drive TrainAxle
CHASSIS
Suspension/FrontIndependent double A arm suspension
Suspension/RearIndependent double A arm suspension
Brakes/FrontDual ventilated hydraulic disc
Brakes/RearDual ventilated hydraulic disc
Tires/FrontAT25 x 8-12 radial
Tires/RearAT25 x 10-12 radial
DIMENSIONS
L x W x H3510mm× 1550mm× 2010mm
Wheelbase2630mm
Ground Clearance(Front / Rear)290mm/300mm
Fuel Capatity30L
Empty weight 843kg
Gross weight 1307kg
Turning Diameter(Left/Right )4970mm/4320mm
Rear Carrier L: 1335mm or 870mm, W: 1305mm, H: 290mm
OTHER
Fuel Unleaded gasoline
Battery12V32A
