800cc UTV
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | LANDMAX D800 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: | 800cc UTV |
| Engine Brand: | Perkins |
| Compression: | 23.5 : 1 |
| Fuel System: | Fuel Injection Pump |
| Fuel Capacity: | 35 L |
| Final Drive: | 2WD/4WD Switch |
| Transmission Mode: | CVT Automatic |
| Warranty: | 12 Months |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EPA |
| Maximum Speed: | <50 km/h |
| Brake Type: | Disc Brake |
| Fuel: | Diesel |
| Displacement: | 800cc |
Product Description
800cc UTV

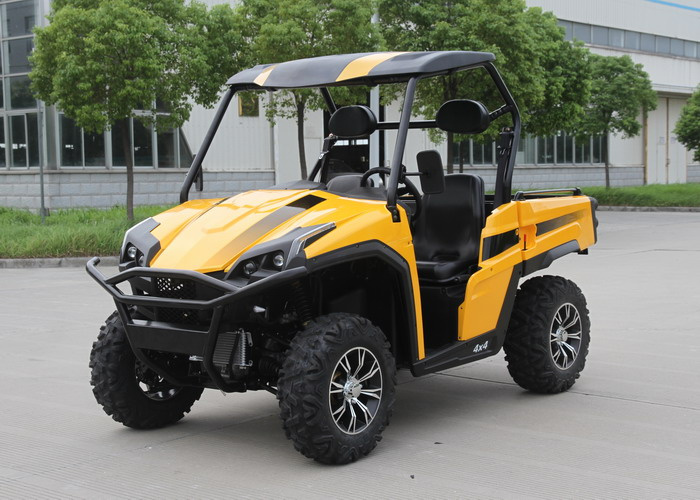

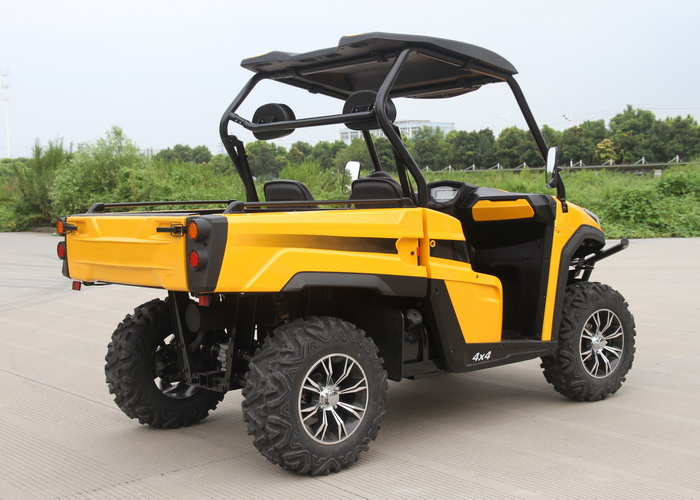

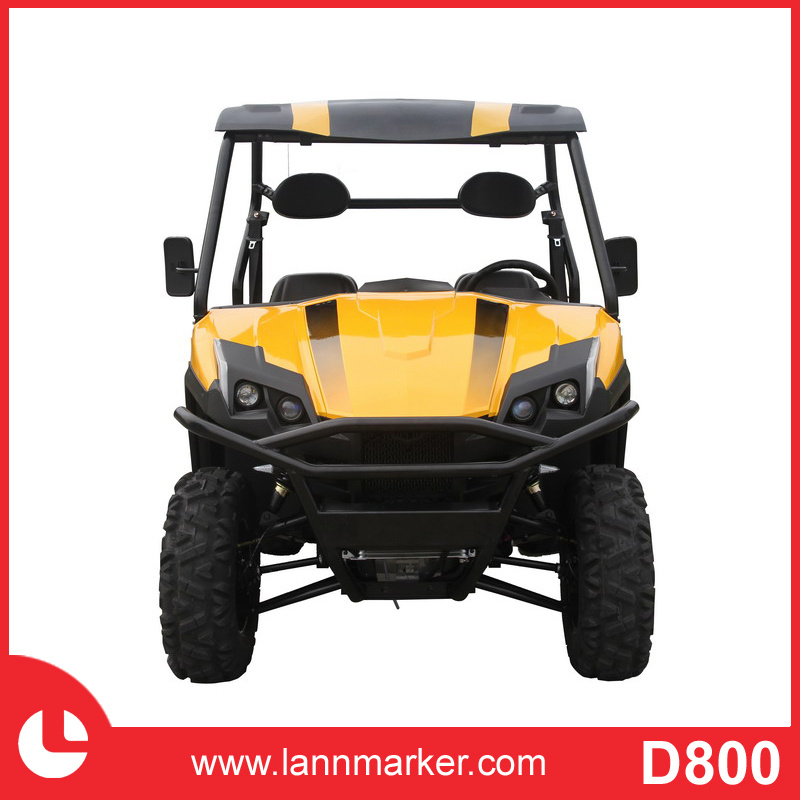

800cc Side by Side Utility Vehicle UTV 4X4 powered by Diesel Engine
LANDMAX D800 satisfy the EEC & EPA standard, they are very popular in European and American market. With the original Perkins® 800cc water-cooled diesel engine, this model has a powerful and stable PTO. It use CVT automatic transmission, with 2WD/ 4WD front and rear locking differential. The front and rear independent suspension make the vehicle very stable.
MAIN FEATURES
- Perkins® Brand Engine from UK
- Water-cooled 800cc Diesel Engine
- CVT Automatic with High-Low
- Shaft Drive 2WD & 4WD Switch
- Front and Rear Locking Differential
- Independent Rear Suspension (IRS)

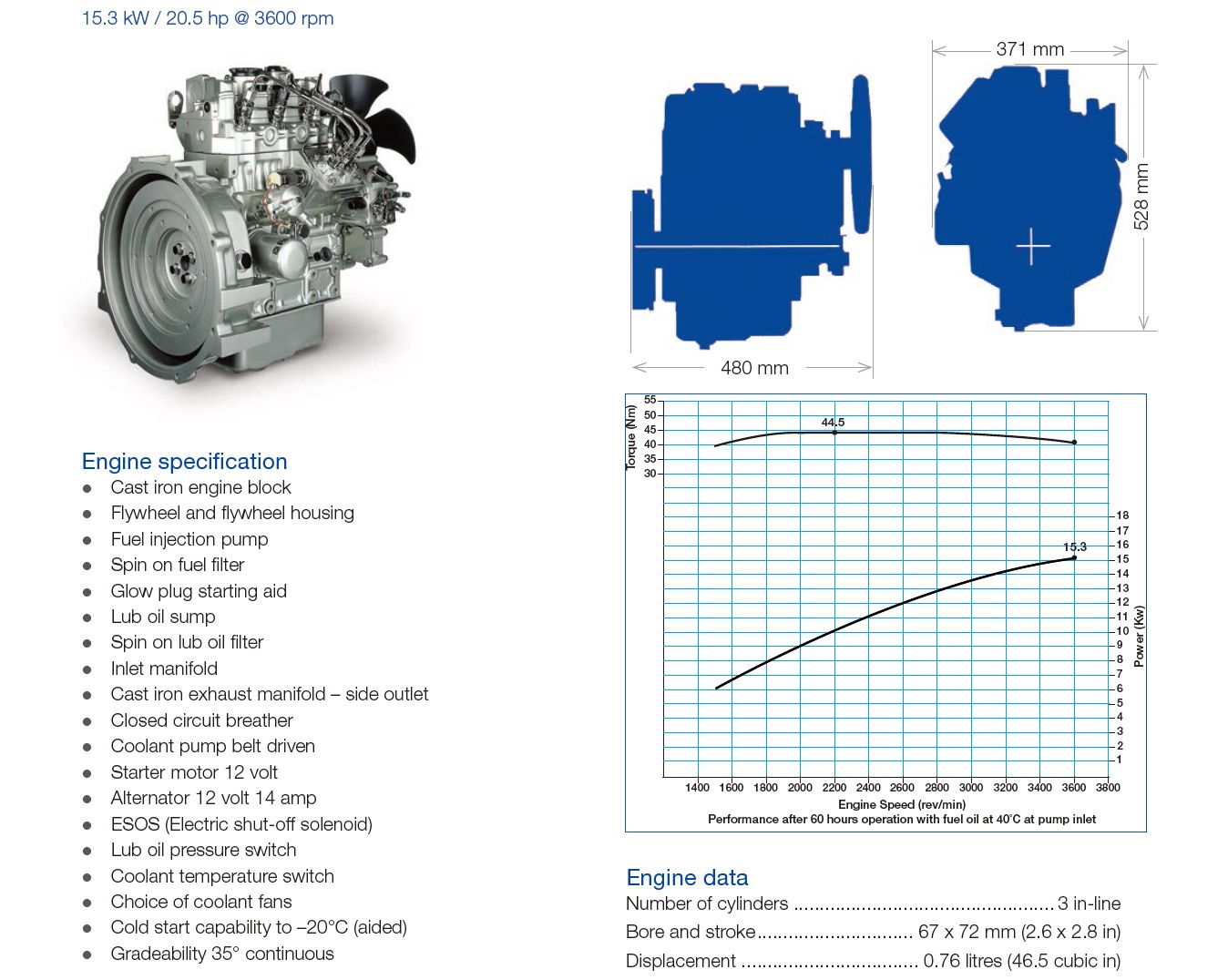

800CC DIESEL ENGINE
| Engine and Feul System | |
| Engine Type | In-Line Three Cylinder Diesel from Perkins |
| Displacement | 762cc |
| Bore x Stroke | 67 x 72mm |
| Compression | 23.5 : 1 |
| Fuel System | Fuel Injection Pump |
| Cooling System | Liquid 50/50 Antifreeze |
| Total Coolant Capacity | 1.2 Litres |
| Max. Power Output | 15.3 kw/3600r/min |
| Max. Torque | 44.5 N.M/2200r/min |
| Fuel Capacity | 35L (9Gal) |
| Transmission Mode | CVT, transmission with high,low,neutral & reverse |
| Final Drive | 2WD/4WD Switch, F/R Locking Differential |
| Battery | 12V 45Ah |
| Wheels and Brakes | |
| Front/Rear Tyres | 26X9-14 / 26X11-14 |
| Front/Rear Wheel Size | 14X7 / 14X8.5 |
| Front/Rear Shock Absorber | Adjustable Tile Steering |
| Brakes System | 4 Wheel Hydraulic Disc |
| Dimensions and Weight | |
| Product Dimension(LxWxH) | 3,018 X 1,520 X 1,905mm |
| Carton Dimension(LxWxH) | 2,320 X 1,790 X 1,250mm |
| Cargo Box Capacity | 400 kg |
| Wheelbase | 1,930 mm |
| Ground Clearance | 280 mm |
| Dry Weight | 700 kg |
| Gross Weight | 795 kg |
| Container Loading | 12 units/40'HQ |
Lannmarker, located in Shanghai and has its own factory in Jiangsu province, produces and exports the most high quality off-road vehicles, water sports equipments and the accessories, our main proudcts includes:
- All-terrain Vehicles (ATVs)
- Side by Side Vehicles (UTVs)
- ATV/UTV Parts & Accessories
- Personal Transporter (FREEYOYO)
- Emergency Rescue Vehicles (MEV09)
- All-terrain Fire Fighting Vehicles (FFV09)
- Personal Watercraft Jet Ski (SEAMAX)
- Multipurpose Aluminum Boats (MB42)
Lannmarker is the leader in technology and innovation, in 2005 we introduced the first 4-Seater UTV to the industry and we have the largest displacement engine available in an UTV today with an 1100CC In-Line 4 Cylinder DOHC Fuel Injected engine and an 800CC In-Line 3 Cylinder DOHC Fuel Injected Engine.
