Specifications
Prod Model: |
GBT800UTV-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
EEC 800CC UTV: |
Popular 800CC UTV with High Quality |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Transmission System: |
Twin V-Type Cylinder, 8 Valves |
Displacement: |
800CC |
Product Description

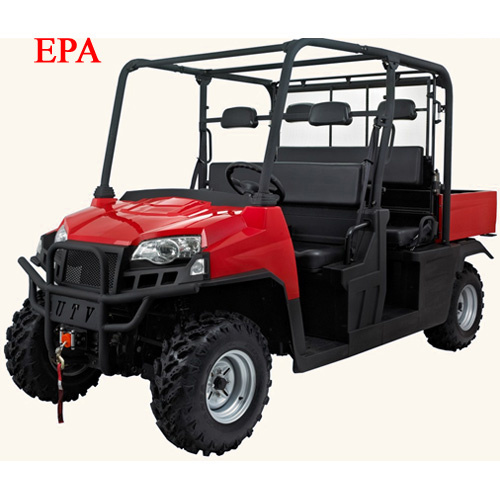

GBT800UTV-2 EPA
Specifications
ENGINE:
Type: 800CC, Water cooled, Twin v-type cylinder, 8 valves
Bore x Stroke: 91mm× 61.5mm
Compression Ratio: 10: 1
Max. Power: 41kw(54.94HP)/6500rpm
Max. Torque: 90N. M/4500rpm
Steering system type: Electric Power Steering
Ignition: EFI
Starting: Electrical
Transmission: CVT sub-transmission with high, low, park, neutral & reverse
Gear Ratio: L: 5.29; H: 2.886; R: 5.45
Drive Train: Axle
Drive System: 2WD or 4WD
CHASSIS
Suspension/Front: Independent double A arm suspension
Suspension/Rear: Independent double A arm suspension
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Dual ventilated hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 3510mm× 1550mm× 2010mm
Wheelbase: 2630mm
Ground Clearance(Front / Rear): 290mm/300mm
Fuel Capacity: 30L
Empty weight: 843kg
Gross weight: 1307kg
Turning Diameter(Left/Right ): 4970mm/4320mm
Rear Carrier: L: 1335mm or 870mm, W: 1305mm, H: 290mm
OTHER
Fuel: Unleaded gasoline
Battery: 12V32A
