800CC UTV (GBTUTV800-X)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 4/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | GBTUTV800-X |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 800ccutv (Gbtutv800-X): | New Style 800CC UTV |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
| Displacement: | 800CC |
Product Description

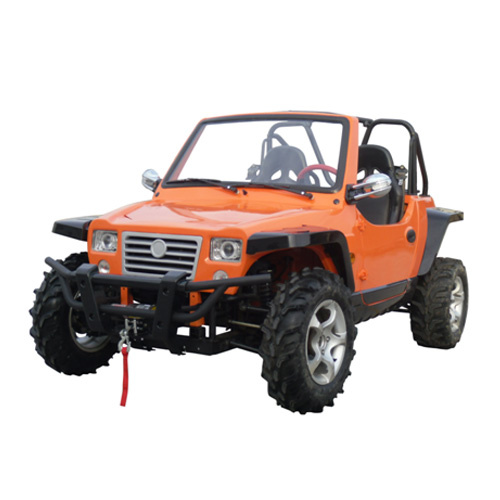

800CCUTV (GBTUTV800-X)Available Color: See below
Size: 3130*1565*1510mm
Wheelbase: 2180mm
Front track: 1360mm
Rear track: 1360mm
Ground clearance: 240mm
Engine type: Water-cooled, 4-stroke
Engine capacity: 800CC
Bore x Stroke: 72mm x 66.5mm
Corrected compression ratio: 9.5: 1
Max output power: 14.9kw/6000rpm
Max torque: 70Nm/3500-4000rpm
Starting: Electric <10s
Ignition: Electric Multipoint Injection
Lubrication: SAE 15W-40/SF
Transmission: 4-MT with reverse
Maximum load: Double seats/250kg
Fuel tank: 24L
Climbing: 25° - 30°
Top speed: 85km/h (or limited as customers require)
Front/Rear brake: Hydraulic disc, right foot control
Front/Rear tire: AT27X8-14 / AT27X11-14
Final drive: Shaft drive
Carton size: 2950mm x 2115mm x 895mm
Net weight: 550kg Gross weight: 640kg
Quantity: 11PCS/40HQ; 4PCS/20GP
