Specifications
Prod Model: |
LANDMAX D800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product: |
800cc Side by Side |
Engine Brand: |
Perkins |
Compression: |
23.5 : 1 |
Fuel System: |
Fuel Injection Pump |
Fuel Capacity: |
35 L |
Final Drive: |
2WD/4WD Switch |
Transmission Mode: |
CVT Automatic |
Warranty: |
12 Months |
Transmission Type: |
Automatic |
Transmission System: |
Shaft Drive |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Certification: |
EPA |
Displacement: |
800cc |
Fuel: |
Diesel |
Product Description

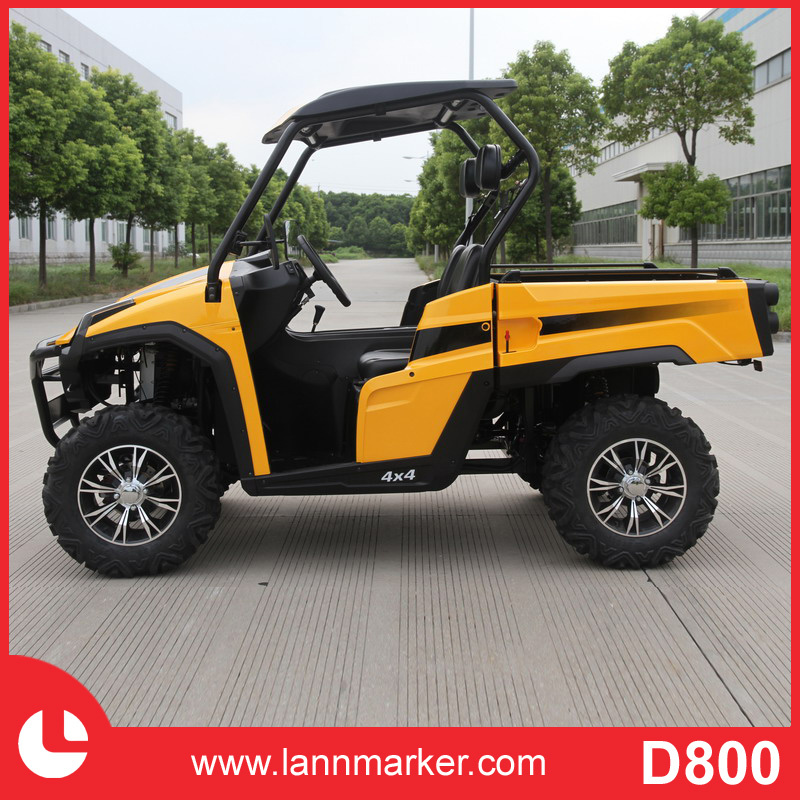

800cc side by side
800cc Side by Side Utility Vehicle UTV 4X4 powered by Diesel Engine
LANDMAX D800 satisfy the EEC & EPA standard, they are very popular in European and American market. With the original Perkins® 800cc water-cooled diesel engine, this model has a powerful and stable PTO. It use CVT automatic transmission, with 2WD/ 4WD front and rear locking differential. The front and rear independent suspension make the vehicle very stable.
MAIN FEATURES
Perkins® Brand Engine from UK
Water-cooled 800cc Diesel Engine
CVT Automatic with High-Low
Shaft Drive 2WD & 4WD Switch
Front and Rear Locking Differential
Independent Rear Suspension (IRS)
800CC DIESEL ENGINE
Engine and Feul System | |
Engine Type | In-Line Three Cylinder Diesel from Perkins |
Displacement | 762cc |
Bore x Stroke | 67 x 72mm |
Compression | 23.5 : 1 |
Fuel System | Fuel Injection Pump |
Cooling System | Liquid 50/50 Antifreeze |
Total Coolant Capacity | 1.2 Litres |
Max. Power Output | 15.3 kw/3600r/min |
Max. Torque | 44.5 N.M/2200r/min |
Fuel Capacity | 35L (9Gal) |
Transmission Mode | CVT, transmission with high,low,neutral & reverse |
Final Drive | 2WD/4WD Switch, F/R Locking Differential |
Battery | 12V 45Ah |
Wheels and Brakes | |
Front/Rear Tyres | 26X9-14 / 26X11-14 |
Front/Rear Wheel Size | 14X7 / 14X8.5 |
Front/Rear Shock Absorber | Adjustable Tile Steering |
Brakes System | 4 Wheel Hydraulic Disc |
Dimensions and Weight | |
Product Dimension(LxWxH) | 3,018 X 1,520 X 1,905mm |
Carton Dimension(LxWxH) | 2,320 X 1,790 X 1,250mm |
Cargo Box Capacity | 400 kg |
Wheelbase | 1,930 mm |
Ground Clearance | 280 mm |
Dry Weight | 700 kg |
Gross Weight | 795 kg |
Container Loading | 12 units/40'HQ |
