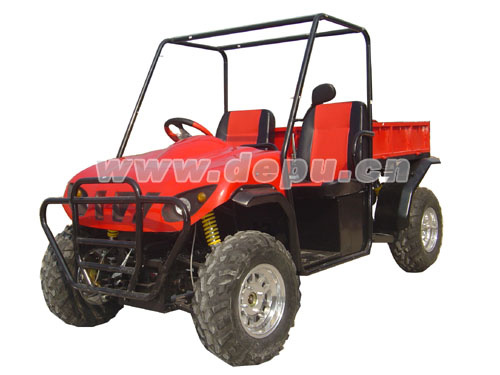

800cc 4*4 Utility Vehicles / RTV / Farm Cart (DP-RTV800-A)

Specifications

Prod Model:	DP-RTV800-A

Product Description

800CC 4*4 Utility vehicles:

Specifications:
1) Ground clearance: 240mm
2) Seat height: 880mm
3) Dry weight: 350kg
4) Max. load: 220kg
5) Max. speed: 120km/h
6) Speed type: 4 manual speeds with reverse
7) Climbing ability: 45 degrees
8) Final drive system: 4-wheel drive, 4WD
9) Transmission: shaft drive
10) Brake type front / rear: disc brake
11) Engine type: dual-cylinder, 4-stroke
12) Bore X stroke: 76 X 72mm
13) Displacement: 746ml
14) Compression ratio: 8.5:1
15) Rated power output: 20.6kW / 5,300rpm
16) Max. power output: 22kW / 5,500rpm
17) Max. torque: 50.00N.m / 3,500 - 4,000rpm
18) Tire: front: 21 X 8-10 rear: 22 X 10-10
19) Suspension: front / rear: independent double a-arm
20) Speedometer: digital indicators (fuel gauge, neutral)
21) Battery: 36Ah / 12V lead-acid battery
22) Turning radius: <3,500mm
23) Towing capacity: 1,000kg
24) Fuel tank: 10L
25) Starting: electric
26) Ignition: CDI
Packaging:
1PC/carton with iron-rack support
Carton dimensions: 2,650 X 1,150 X 860mm
Outer packing:
Steel frame with carton
Conveyance:
Qty/20' FCL: 4PCS
Qty/40' HQ: 12PCS
