Specifications
Prod Model: |
GBT800ATV-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
800c EEC ATV (Gbt800ATV-2): |
800CC, Water Cooled, Twin V-Type Cylinder, 8 Valve |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
800CC |
Product Description

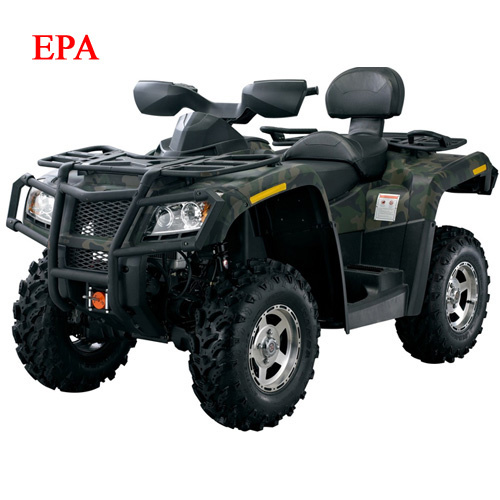

800C EEC ATV (GBT800ATV-2)
Specifications
ENGINE:
Type: 800CC, Water cooled, Twin v-type cylinder, 8 valves
Bore x Stroke: 91mm× 61.5mm
Compression Ratio: 10: 1
Max. Power: 41kw(54.94HP)/6500rpm
Max. Torque: 90N. M/4500rpm
Steering system type: Electric Power Steering
Oil supply system: EFI
Starting: Electrical
Transmission: CVT sub-transmission with high, low, park, neutral & reverse
Drive Train: Axle
Drive System: 2WD or 4WD
Max. Speed: 125km/h
CHASSIS
Suspension/Front: Macpherson suspension
Suspension/Rear: Pull-type suspension
Brakes system: Dual ventilated hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
Wheels: Aluminum
DIMENSIONS
L x W x H: 98.8× 44.1× 54.7in (2510× 1120× 1390mm)
Wheelbase: 58.7in (1490mm)
Ground Clearance: 12.2in (310mm)
Seat height: 35.4in (900mm)
Fuel capacity: 5.3 US gal (20L)
Dry weight: 871lb (395kg)
Towing capacity: 772lb (350kg)
Rack capacity: Front: 77lb (35kg); Rear: 165lb (75kg)
OTHER
Warranty: 12 months limited factory warranty
