Specifications
Prod Model: |
JSE203 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel Hub: |
Alloy Hubs |
Voltage Of Battery: |
36V |
Folded: |
Unfolded |
Motor: |
Brushless |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Maximum Loading Capacity: |
≥120kg |
Running Distance: |
>60KM |
Charging Time: |
6-8h |
Certification: |
DOT |
Wheel Size: |
18" |
Power: |
750W |
Max Speed: |
32km/H |
Brake: |
Front and Rear Disk Brake |
Product Description

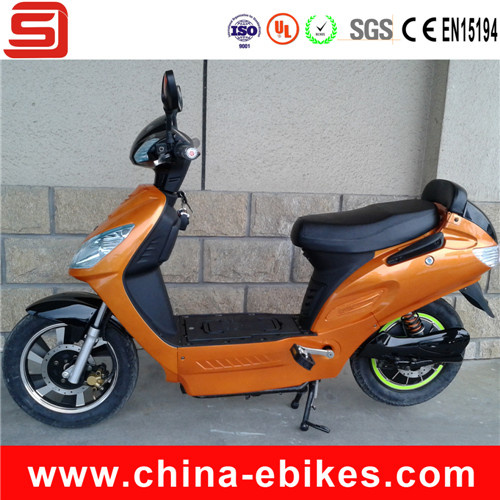

750W 48V 20Ah electric scooter with pedals:
Electric Motor: 750W Brushless DC hub motor
Battery: CE Deep Cycle Sealed Lead Acid 48V 20AH
Power Supply Weight.: 28kgs
Recharge Times: >600 times
Charger: 48VDC/2.5A Smart Charger, CE/UL type listed
Tires: 18"x2.5
Max speed: . 32 km/h
Range: 50-60km depend the terrain and loading weight
Degree of Climb: 25 degree constant grade
Brake System: Front/Rear hydraulic disk brakes
Stopping Distance: <8'
Loading Capacity: 130 kgs
Dashboard: LCD digital screen including Voltage, Speedometer & Battery gauge meter, lighting system indicator
Charging input voltage: AC110-240V/50-60Hz
Charging Time: 6-8 hours dependant on use!
N. W.: 75kgs(incl. Battery)
G. W.: 80 kgs (incl. Battery)
Accessories: Rear-view mirrors, chargers, pedals, tail box, horn, tool kits, manuals, etc.
Carton size: 1700*480*1150mm(L*W*H)(Fully Assembled Packing)
Qty/container: 30pcs/20" FCL; 62pcs/40" FCL.
Safety Features:
1. )Lighting system: Large headlight and tail light, turn signals, wheel reflectors, back-lighted instrument panel for night time operation
2. )Horn: Horn with audible alarm while turning
3. )Mirrors: Wide rear view mirrors
4. )Brake system: High quality hydraulic disk brakes
5. )Kickstand Include both heavy duty double leg kickstand and single flickstand
6. )Motor lock digital rear wheel and motor lock cannot be bypassed or deactivated without key
7. )Shock absorption front hydraulic suspension absorption shock and shock absorption rear fork
8. )Anti-theft system high level audible signal with remote control
