Home Zhejiang Geely Ming Industrial Co., Ltd. 70CC Economic Motorcycle (JL70)
Specifications
| Prod Model: | JL70 |
|---|---|
| Certification: | CCC |
| Engine Type: | 4-Stroke |
| Displacement: | 51-125CC |
Product Description

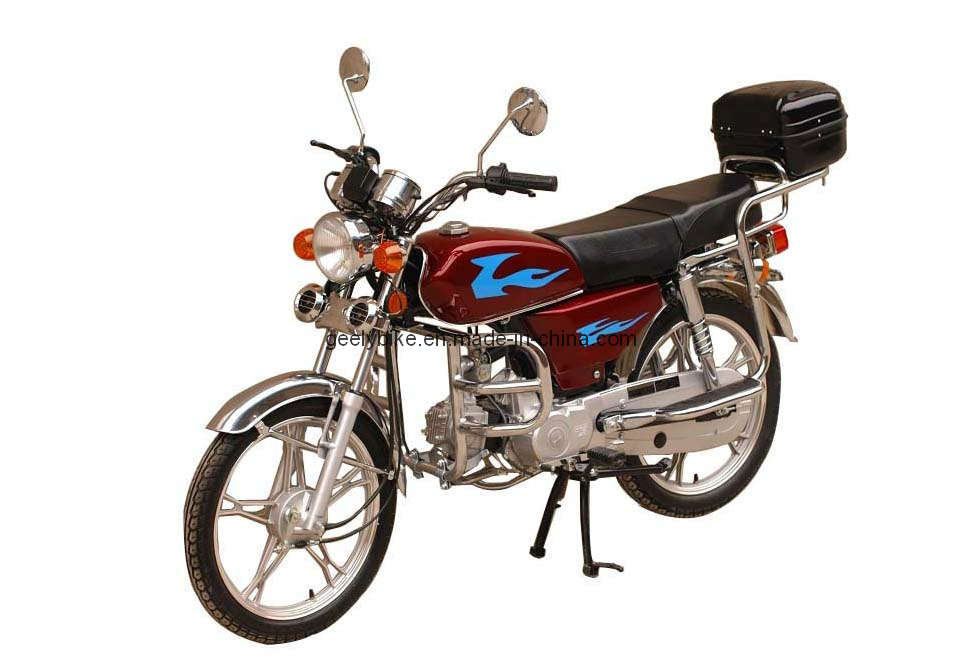

70CC economic motorcycle with reliable quality. Both aluminium rims and spoke rims available. Optional fittings: Front bumper, pillion pedals with big luggage carrier, rear trunk.| ITEM | SPECIFICATIONS |
| DIMENSIONS L× W× H (mm) | 1805× 750× 1010 |
| WHEEL BASE (mm) | 1190 |
| GROUND CLEARANCE (mm) | 135 |
| MAX. LOAD (kg) | 150 |
| GROSS WEIGHT (kg) | 75 |
| ENGINE MODE | SINGLE CYLINDER, AIR-COOLED, 4 STROKE |
| DISPLACEMENT (ml) | 71.8 |
| COMPLRESSION RATIO | 8.8: 1 |
| BORE× STROKE | 47.0× 41.4 |
| IGNITION | CDI |
| RATED POWER KW/(r/min) | ≥ 3.3/(8000± 500) |
| MAX. TORQUE N. m/(r/min) | 5.0/(6000± 500) |
| MIN. UNLOADED ROTATION(r/min) | 1500± 150 |
| STARTING | KICK/ELECTRIC START |
| LUBRICATION | PRESSING, SPLASHING |
| GEARSHIFT MODE | 4 SPEED GEAR-IN |
| CLUTCH | OIL, MULTI-PLATE |
| MAX. SPEED (km/h) | 60 |
| BRAKE (FR/RR) | DRUM/DRUM |
