7.5kw Adult Electric UTV Electric ATV
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | E-UTV |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: | 7.5kw E-UTV |
| Battery: | 6*12V Silicone Battery |
| Motor: | Kds Brushless AC Motor |
| Controller: | Sevcon Gen4 72V 350A |
| Passenger Capacity: | 2 |
| Range: | 135 Km |
| Max Speed: | 42km/H |
| Minimum Turning Radius: | 4.6m |
| Max Climbing Ability: | 16 Degree |
| Product Dimensions: | 2980 X 1470 X 1560mm |
| Transmission Type: | Automatic |
| Structure: | Two Side Doors |
| Transmission System: | Shaft Drive |
| Brake Type: | Disc Brake |
| Power: | >1000W |
| Certification: | EPA |
| Condition: | New |
| Maximum Speed: | 42 Km/H |
| Brand: | Lannmarker |
Product Description
7.5KW Adult Electric UTV Electric ATV
7.5KW Electric UTV with Sevcon Controller and KSD Motor

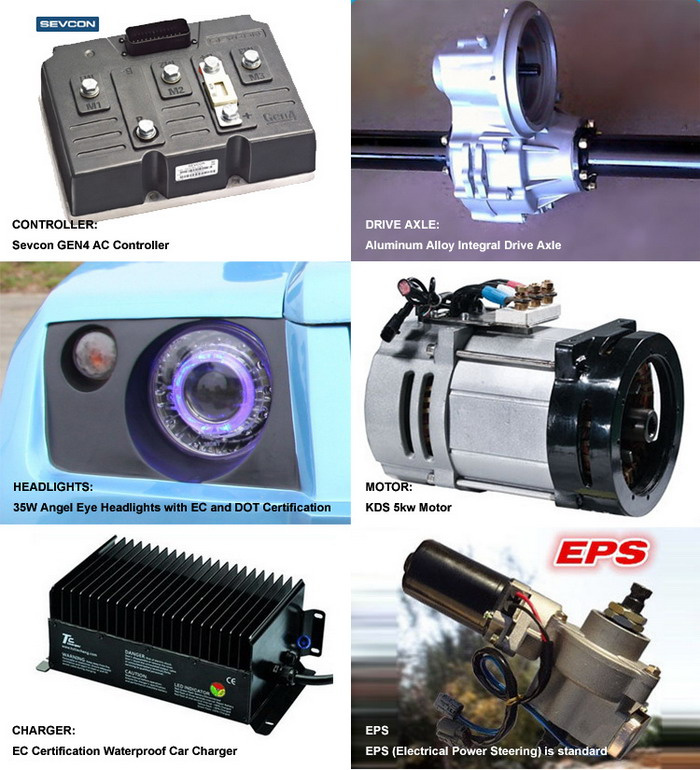

1. MAIN FEATURES
- All Electric - Zero Emissions
- SEVCON® GEN4 AC Controller
- KSD® 7.5KW Brushless AC Motor
- CHILWEE® Silicone Battery 72V
- Electrical Power Steering (EPS)
- EC Certification Waterproof Car Charger
2. PARTS & ACCESSORIES:
3. SPECIFICATION:
| SPECIFICATION | |
| KEY COMPONENTS | |
| Battery | 6*12V, Chaowel Silicone Battery |
| Motor | KDS 7.5kw Brushless AC Motor |
| Controller | SEVCON GEN4 72V 350A (MAX 420A) |
| PERFORMANCE | |
| Passenger Capacity | 2 |
| Range | 135 km |
| Max Speed | 42km/h |
| Minimum Turning Radius | 4.6m |
| Max Climbing Ability | 16 degree |
| Max. Movement after brake | ≤ 4m at 30km/h |
| Payload Capacity | 150kg |
| Net Weight | 470kg (not including battery) |
| Battery Weight | 52kg*6 (312 kg) |
| Charging Time | 6 ~ 8h |
| DIMENSIONS | |
| Product Dimensions | 2980 x 1470 x 1560mm |
| Cargo Box Dimensions | 710 x 1160 x 260mm |
| Min. Ground Clearance | 200mm |
| Wheelbase | 2020mm |
| Wheel Span | 1270mm |
| Front and Rear Tire | 185/70-14 |
| Steering System | Pinion and Rack |
| Front Suspension | Double Arm Independent Suspension |
| Rear Suspension | Trailing-Arm |
| Chargers | Waterproof Vehicular |
| Brake System | Front: Disc Brake; Rear: Drum Brake |
| Container Loading | 12 units/40'HQ |
Lannmarker, located in Shanghai and has its own factory in Jiangsu province, produces and exports the most high quality off-road vehicles, water sports equipments and the accessories, our main proudcts includes:
- All-terrain Vehicles (ATVs)
- Side by Side Vehicles (UTVs)
- ATV/UTV Parts & Accessories
- Personal Transporter (FREEYOYO)
- Emergency Rescue Vehicles (MEV09)
- All-terrain Fire Fighting Vehicles (FFV09)
- Personal Watercraft Jet Ski (SEAMAX)
- Multipurpose Aluminum Boats (MB42)
Lannmarker is the leader in technology and innovation, in 2005 we introduced the first 4-Seater UTV to the industry and we have the largest displacement engine available in an UTV today with an 1100CC In-Line 4 Cylinder DOHC Fuel Injected engine and an 800CC In-Line 3 Cylinder DOHC Fuel Injected Engine.
QUALITY
Lannmarker provides itself on quality and strive to continuously improve our product through customer feedback. Our quality staff performs the following functions related to ensuring the quality of our vehicles and products that include supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections (PDI). We rigorously test each and every vehicle after assembly on our state of the art testing simulator and actual road test. Each vehicle is final inspected using our 121 point checklist before packaging and is included with each vehicle. Most importantly is that we listen to what our customers have to say and are always looking for ways to improve the quality of our products through continuous improvement.
CUSTOMER SERVICE
Lannmarker has made a commitment to be the leader in customer service before and after the sale. We carry thousands of spare parts for immediate delivery to anywhere in the world. While our vehicles come standard with more features than anyone else we also offer more optional parts for our vehicles than anyone else. We will strive to achieve the necessary results and solutions to any customer concern and, to provide the most accurate and up to date information possible and to better inform our customers of our products and the services we provide. Our goal is to provide the customer with level of service they deserve and to improve the communication. So please feel free to contact us anytime with questions or concerns you may have regarding our vehicles, products or the customer service you have received.
Lannmarker is looking forward to closer collaboration with friends from all the world.
