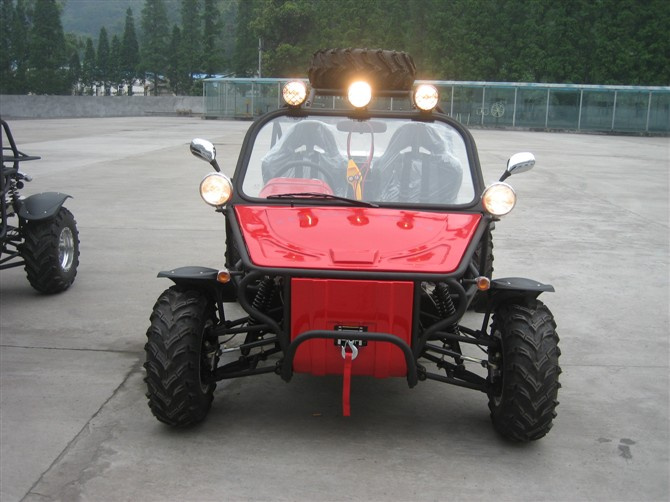

Home Wenzhou New Concept Power Machinery Limited Company 650cc Off-Road Go-Kart
Product Description
1) Engine Type: 2-cylinder, 4-stroke, liquid-cooled Brand of the engine: Lindi2) Transmission System: Manual clutch, 4Shift/Reverse
3) Bore x Stroke: 76 x 71m
4) Piston displacement: 644cc644cc
5) Compression Ratio: 9.0: 1
6) Maximum Power: 21kW/4500RPM
7) Maximum Torque: 49/3000~3500N. M. /rpm
8) Starting System: Electric
9) Gearing: Shaft drive
10) Product Dimensions: 2770 x 1760 x 1580mm
11) Wheelbase: 2060mm
12) Front Track: 1510mm
13) Rear Track: 1540mm
14) Min. Turning Radius: 4450mm
15) Ground Clearance: 260mm
16) Rider Capacity: 2
17) Brake (front/rear): Hydraulic disc/right foot control
18) Front Tyre: AT 25 x 8-12
AT 25 x 8-12
19) Rear Tyre: AT 25 x 10-12
20) Ignition: C. D. I.
21) Fuel Tank Capacity: 23L
22) Front Suspension: Independent dual A-arm
23) Rear Suspension: Independent dual A-arm
24) Parking Brake: Rear wheel
25) Max. Speed: 75km/h
26) Max. Loading Capacity: 200kg
27) Valve Train: Cam gear Packing.
Wenzhou New Concept Power Machinery Co., Ltd. (New Concept) is founded in 2006. We are located in Wenzhou City. Our company leads in the research and development, production and sales of distinctive large displacement go kart industry which has acquired not only top technical and management personnel, but also advanced equipment and technology. We are honestly expecting to cooperate with all friends around the world to create resplendence together.
