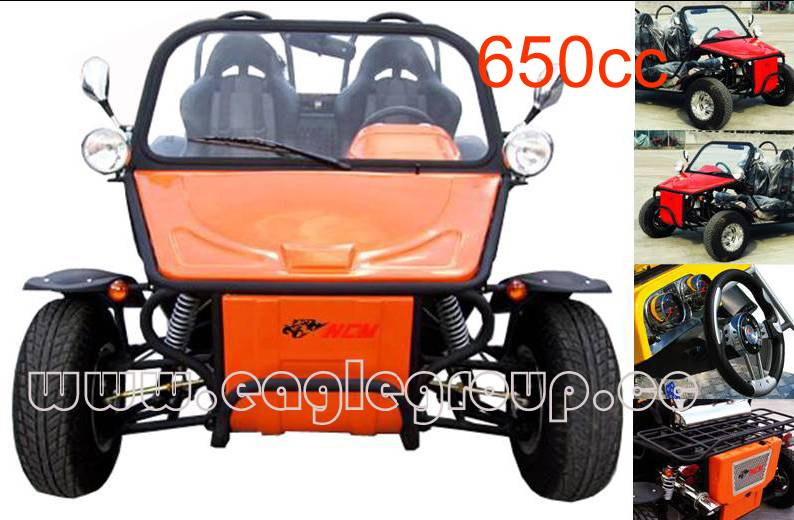

650cc Go kart /Buggy with EEC Certificate(YG-650GKA-1)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | YG-650GKA-1 |
|---|
Product Description
1) Engine Type: 2-cylinder, 4-stroke, liquid-cooled2) Transmission System: Manual clutch, 4Shift/Reverse
3) Bore x Stroke: 76 x 71mm
4) Piston displacement: 644cc
5) Compression Ratio: 9.0: 1
6) Maximum Power: 21kW/4500RPM
7) Maximum Torque: 49/3000~3500N. M. /rpm
8) Starting System: Electric
9) Gearing: Shaft drive
10) Product Dimensions: 2770 x 1760 x 1580mm
11) Wheelbase: 2060mm
12) Front Track: 1510mm
13) Rear Track: 1540mm
14) Min. Turning Radius: 4450mm
15) Ground Clearance: 260mm
16) Rider Capacity: 2
17) Brake (front/rear): Hydraulic disc/right foot control
18) Front Tyre: AT 25 x 8-12
19) Rear Tyre: AT 25 x 10-12
20) Ignition: C. D. I.
21) Fuel Tank Capacity: 23L
22) Front Suspension: Independent dual A-arm
23) Rear Suspension: Independent dual A-arm
24) Parking Brake: Rear wheel
25) Max. Speed: 75km/h
26) Max. Loading Capacity: 200kg
27) Valve Train: Cam gear Packing
