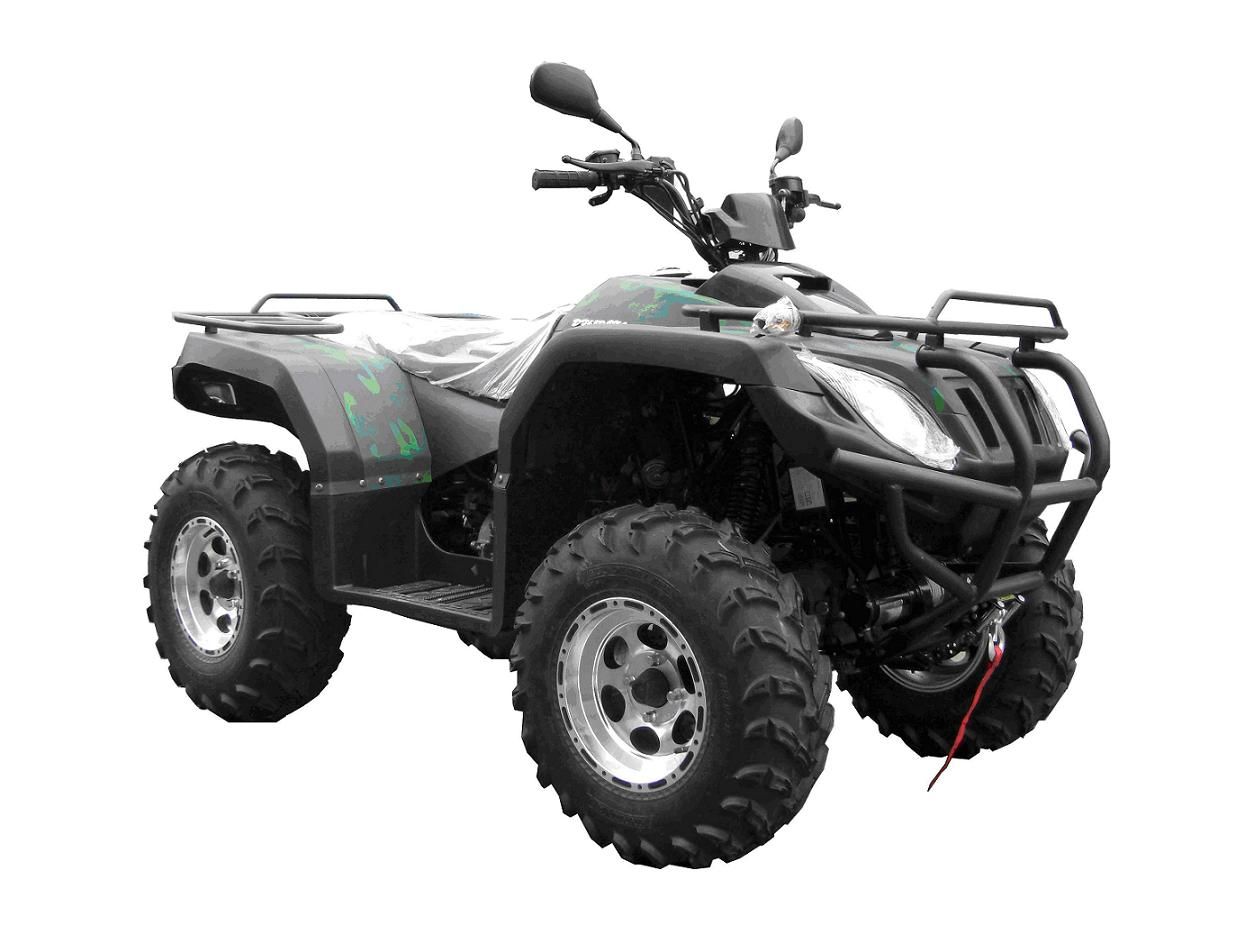

Home Ningbo Yinzhou Tongli Sports Vehicle Factory 650CC ATV with EEC and EPA / DF650ATV-B
| Prod Model: | DF650ATV-B |
|---|
Product Description
DF650 ATV-B EEC1) Engine type: Two Cylinder, 4-stroke, water-cooled, 4 forward gears with reverse
2) Displacement: 644cc
3) Max Torque: 49N. M/2700-3300r/min (Europe standard: 39.0N. M/2700-3300r/min)
4) Max Power: 20.6kw/4500r/min (Europe standard: 15kw/4500r/min)
5) Compression ration: 9.0: 1 (Europe standard: 8.4: 1)
6) Ignition system: Battery
7) Oil capacity: 15L
8)Economical oil exhaust(L/100km): 5.5
9) Max speed: 80km/h (Europe standard: 75km/h)
10) Starter system: Electric
11) Transmission: Dual independent shaft drive
12) Brake Type: Hydraulic disc brake / Hydraulic disc brake
13) 4*4 system: On-command 2WD/4WD and Command front diffential lock
14) Wheelbase: 1385mm
15) Ground clearance: 290mm
16) Tires (front / rear): 25 x 8-12 / 25 x 10-12
17) N. W.: 375KGS
G. W.: 425KGS
18) Product dimension: 2215*1195*1220
19) Carton dimension ( Don't take down wheels ): 2250*1225*1080
Carton dimension ( Take down wheels ): 2250*1160*920
20) Qty/20FT: 8units ( take down wheels: 10 units )
Qty/40GP: 18units ( take down wheels: 20 units )
Ningbo Yinzhou Tongli Sports Vehicle Factory is a medium-sized and comprehensive manufacturing company that integrates research and exploitation, manufacture of ATVs, Dirt Bikes, Go-Carts, Utility Truck, Trikes, Three Wheeled Motorcycles, Golf Carts, Mobilemotor Parts and so on.
The company occupies an area of 10, 000 square meters, and has fixed asset of 10 million Yuan and over 200 staff, which has annual output of 200, 000 all kinds of vehicles. We have exported our products to Europ, USA, Australia, Kuwait, Japan and so on.
Positioning in a high starting point, the company constantly pursues and introduces new technology and management and adjusts and perfects the structure of products, strengthens inside basic management, guarantees product quality and exploits new market.
"Regards today is backwardness"--- that urges on Tongli Company to innovate future.
People from Tongli are willing to create brilliance with you together.
The company occupies an area of 10, 000 square meters, and has fixed asset of 10 million Yuan and over 200 staff, which has annual output of 200, 000 all kinds of vehicles. We have exported our products to Europ, USA, Australia, Kuwait, Japan and so on.
Positioning in a high starting point, the company constantly pursues and introduces new technology and management and adjusts and perfects the structure of products, strengthens inside basic management, guarantees product quality and exploits new market.
"Regards today is backwardness"--- that urges on Tongli Company to innovate future.
People from Tongli are willing to create brilliance with you together.
