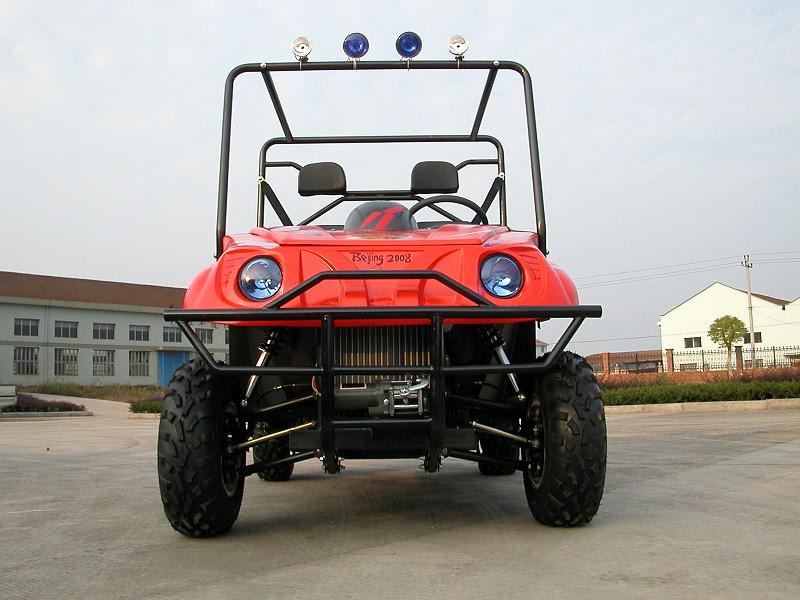

650CC 4*4 EPA Utility Vehicle

Specifications

Prod Model:	650UTV (4 Seat)

Product Description

Dimensions:
Overall length: 116in. (3, 950mm)
Overall width: 62in. (1, 580mm)
Overall height: 72in. (1, 830mm)
Wheelbase: 78in. (2, 950mm)
Ground clearance: 11.2in. (280mm)

Engine:
Type: 2 cylinders, 4-stroke, liquid-cooled
Bore x stroke: 76mm x 71mm
Displacement: 644cc
Compression ratio: 8.4: 1
Carburetor: BJH101E
Max. Power: 20.6kW/5, 300rpm
Maximum torque: 44/2, 700~3, 300N. M/r/min
Starting: Electric
Ignition: CDI
Lubrication: Force and splash
Transmission: Manual clutch, 4-shift/reverse
Spark plug: F6T or F6TC
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30

Capacities:
Turning radius: 157.5 in(4000mm)
Fuel tank: 40.0L
Starting: <5s
Climbing: 20-25
Battery: 12V36Ah
Fuse: 35A
Max speed: 35 miles/h

Chassis:
Front, Rear brake: Hydraulic disc, right foot control
Front tire: 25*8-12
Rear tire: 25*10-12
Drive Train: 2WD/4WD Shaft

Tire Pressure:
Front: 205kpa 2.1kg/cm2 30psi
Rear: 205kpa 2.1kg/cm2 30psi

Weight:
Max load capacity: 800kg
Net Weight: 690kg
Packing Size(mm): 3800x1560x1150
Shipping info: 2pcs(20' FCL)/6pcs(40' FCL)

Suspension
Front: Double A model, absolute suspension
Rear: Double A model, absolute suspension
Colors: Red, Blue, Green, Brown, Black, Yellow, Army camouflage, Naval camouflage, Maple leaf camouflage
