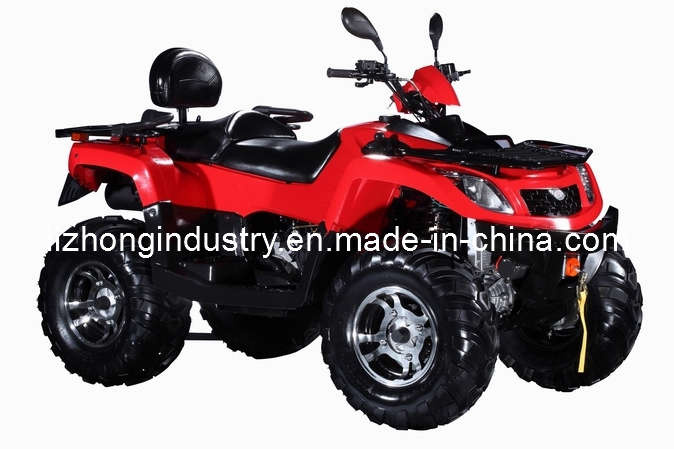

550CC Double Cylinder Injection Water Coold Cvt 4*4 ATV (LZA500E)
| Price: | US $ 3600/Piece |
|---|---|
| Trade Terms: | others |
| Min Order: | 8/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | LZA550E |
|---|---|
| Markets: | Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | >400CC |
Product Description
ENGINE TYPE 4 Strokes, Water-cooledMAX. POWER(KW/rpm) 25KW/6000rpm
MAX. TORQUE(NM/rpm) 45N. M/5000rpm
MAX. SPEED 75KM/h
CYLINDER NO. Double Cylinder
BORE STROKE 72.5mm x 66.8mm
DISPLACEMENT 552cm
COMPRESSION RATIO 10.3: 1
CARBURETOR EFI
LUBRICATE Separated pressure
AIR FLTER TYPE Dry Air-Cleaner Net
SPARK PLUG A7RTC
STARTING C. D. I. Electric Start
STARTING PROCEDURE Open lgnition, Brake, Press on Switch
GEARSHIFT By hand
TRANSMISSION Axle
BRAKE FRONT Disc Brake
BRAKE REAR Disc Brake
BRAKE DISTANCE 7m/30km/h
FRONT SUSPENSION Double Wishbone
REAR SUSPENSION Double Wishbone
SHOCK ABSORBER(F) Double
SHOCK ABSORBER® Double
BATTERY 12V/18AH
ENGINE OIL 1.5L
TRANSMISSION OIL 0.8L
REAR OIL 0.3L
FUEL 93# Unleaded Gasoline
FUEL CAPACITY 24L
TURNING RADIUS 3520mm
MAX. LOAD(kgs/lbs) 156kg
FRONT TIRE 25x8-12
REAR TIRE 25x10-12
OVERALL 2265x1150x1260mm
CARTONE SIZE (L/M/H) 2280x1290x870mm
PACKAGE40HQ`(SET) 27PCS
WHEELBASE(mm) 1440mm
SEAT HEIGHT(mm) 930mm
GROUND CLEARANCE 183mm
NET WEIGHT(kgs/lbs)
COLOR CODE Red, Green, Black
