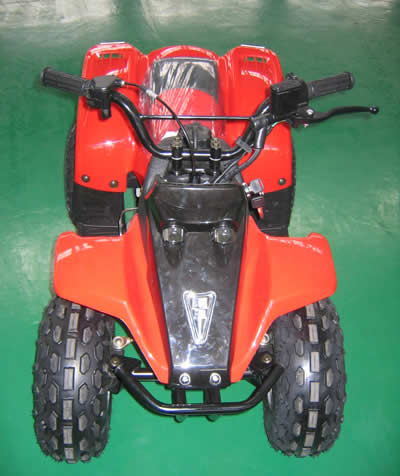

50cc, Single-Cylinder, 4 Stroke ATV (ATV50-c)

Specifications

Prod Model:	ATV50-c

Product Description

1) Max speed: >30km/h

2) Climbing ability: >15o

3) Max loading: 80kg

4) Distance between axles: 690mm

5) Distance between front wheels: 420mm

6) Distance between rear wheels: 510mm

7) Ground clearance: 110mm

8) Specification of front wheel: 145/70-6

9) Specification of rear wheel: 145/70-6

10) Engine: 50cc, single-cylinder, 4 stroke

11) Displacement: 49ml

12) Rated power and rotation speed: 2. 3kw/8, 500rpm approx.

13) Max torque and rotate speed: 2. 7N. M/6, 500r/min

14) Compression ratio: 7: 1

15) Transmission: Fully auto clutch and 4 speed semi auto

16) Starting system: Electric start and kick-back start

17) Cooling system: Air cooling

18) Oil tank: 3. 4L

19) Brake: Front and rear disc brake

Packing:

Product dimensions: 1, 120 x 730 x 560mm

Carton dimensions: 1, 150 x 760 x 700mm

N. W.: 63kg

G. W.: 71kg

Conveyance:

Qty/20' FCL: 48

Qty/40' FCL: 102

Qty/40' HQ: 136
