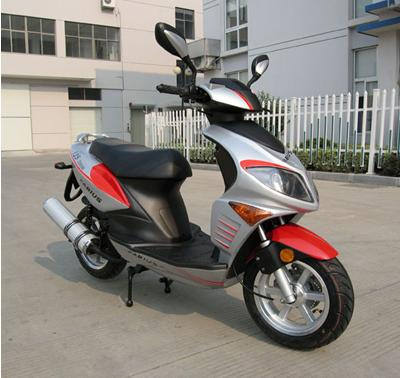

50cc or 125cc Scooter (with EEC) (XY-50QT-39)

Specifications

Prod Model:	XY-50QT-39

Product Description

Engine style: 50cc 4stroke (139QMB, Single-cylinder, 49.6cc, 4stroke, Air cooled)
50cc 2stroke (1PE40QMB, Single-cylinder, 49.6cc, 2stroke, Air cooled)
125cc 4stroke (152QMI, Single-cylinder, 124.6cc, 4stroke, Air cooled)
Bore * Stroke: 39.0*41.5 mm/40.0 x 39.2mm/52.4 x 57.14mm
Compression Ratio: 10.5: 1 / 7: 1 / 9.2: 1
Max power: 2.5kw/7000r/min/3.2kw/7000(r/min) /5.6kW/7, 500rpm
Ignition: CDI Ignition Starting mode: Electric and kick starter
Clutch Dry: Automatic Centrifugal L*W*H: 1840*695*1170mm
Brake system: Front disc/Rear drum or disc
EEC Max Speed: 25km/h or 45km/h/45km/h/>85km/h
Tires: 120/70-12 Fuel Tank: 5L
Economic fuel consumption: 50cc 4stroke (≤2.0L/100km ( aluminum muffler)
50cc 2stroke (≤2.0L/100km (iron muffler)
125cc 4stroke (≤2.8L/100km (aluminum muffler)
Max load: 75 kg/75 kg/150 kg Battery: 12V 7AH
Dry weight: 97kg/97kg/102kg
SKD Packing size: 1870*570*870 mm, 75units /40HQ; 24units/20FT
