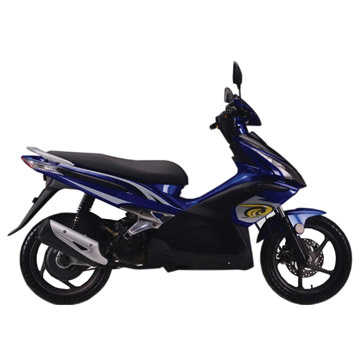

50cc Eec Hybrid Scooter (FM50E-45)

Specifications

Prod Model:	FM50E-45

Product Description

Size(mm) 1885x675x1030
Axle Distance(mm) 1350
Min. Ground Clearance 140mm
Weight(kg) 107kg
Load Capacity <=104kg
Tire size 3.50-10 or 90/90-12 220kpa for front wheel
3.50-10 220kpa for rear wheel
Under Engine Condition
Brake Distance <=7m(30km/h)
Starting <=15s
Noisance <=82dB
Headlight >=4000cd
Max. Speed <=45km/h
Best Slope Capacity >=20
Petrol Consumption <=2.2L/100km
Engine Type single cylinder, foced-air cooling, 4 stroke
Engine size 600x370x300mm
Displacement 49.5cc
Max. Power(kw. /r. Min) 2.3/8000+-200
Rated Power(kw/r. Min) 2.1/7500+-200
Max. Torque N. M(r/min) 2.8/6000+-250
Oil No. 90#
Fuel No. SAE-15W/40
Fuel Capacity 5L
Starting Mode Electrical starting, Kick starting
Ignition CDI
Spark Size A7RTC
Under Battery Condition
Motor Type 800W brushless
Rated Voltage 36V
Battery Type 36V15Ah LITHIUM battery
Engine battery 12V5AH
Horn Type 12V
Headlight Type 12V18W
Turninglight Type 12V5W
Taillight type 12V5W
