Home Xingyu Industry & Trade Co., Ltd. 50cc Dirt Bike (XY-33-50W)

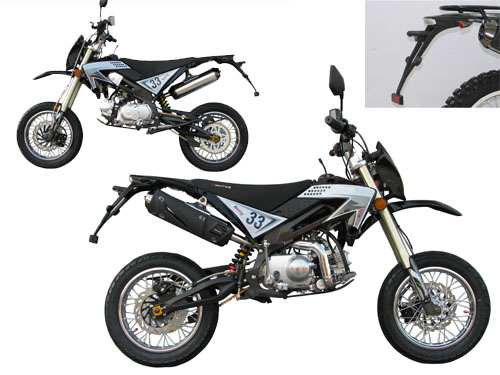

50cc Dirt Bike (XY-33-50W)

50cc Dirt Bike (XY-33-50W)
Price: Negotiable/Piece
Min Order: 1 /Piece
Pay Type: L/C

Specifications

Prod Model: XY-33-50W

Product Description

Specification:
Engine: Four-stroke, single cylinder, Electric-kick start
Cooling: Air cooled Displacement: 49ml
Bore x stroke: 39x41.4mm Compression ratio: 8.8: 1
Max power: 2.45kw/9500rpm(1+/-5%) Ignition: CDI
Transmission: Five-speed with manual Clutch, 1-N-2-3-4-5
Front suspension: Inverted and hydraulic fork
Rear suspension: Hydraulic and damping shock absorber
Front brake: Hydraulic single petal disc with dual piston caliper
Rear brake: Hydraulic single petal disc with dual piston caliper
Front tire: Motard 80/90-14 Motard 90/90-14 Knobby 70/100-17
Rear tire: Motard 90/90-14 Motard 90/90-14 Knobby 90/100-14
Overall length: 1790mm X750mmX960mm.
Wheelbase: 1250mm/49.2in.
Ground clearance: 300mm/11.81in.
Seat height: 820mm/32.3 in. Dry weight: 90 kgs / 244lbs
Fuel capacity: 3.5L / 0.77gal.
Carton size: 1600X380X765mm
Loading Qty (20ft/40'ft/40'Hq): 60/129/150pcs
