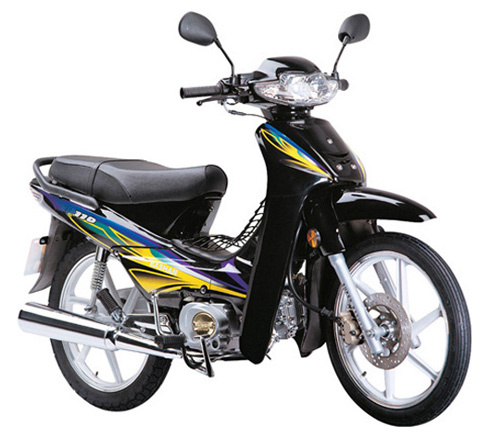

50cc,70cc,90cc,100cc,110cc,125cc Cub Motorcycle (LM110-3)

Specifications

Prod Model:	LM110-3
Certification:	EPA
Engine Type:	4-Stroke
Type:	Racing Motorcycle
Displacement:	51-125CC

Product Description

Engine Type: Single cylinder, Air cooling, 4 strokes
Clutch: Automatic
Ignition Method: C. D. I
Starting Method: Electric&kick start
Transmission: Chain
Bore*Stroke(mm): 50*49.5
Displacement(ml): 97
Compression Radio: 8.8: 1
Rated Power: (kw/r/min): 4.5/7500±500
Maximum Torque(N. M/r/min): 6.5/5500±500
Lubrication: Splash
Gear: 4
Dimensions L*W*H(mm): 1975*690*1070
Wheel base(mm): 1220
Seat Height(mm): 780
Min Turning radius(mm): 1800
Min. Ground clearance(mm): 130
Rider capacity: 2
Brake: Front&rear drum
Front wheel: 2.50-17
Rear wheel: 2.75-17
Fuel tank capacity(L): 3.5
Engine oil capacity(ml): 800
Climbing capacity: E15
Max speed(kw/h): 75
Max load(kg): 110
Battery: 12V5Ah-3B
Packing size L*W*H (mm): 1700*450*810
Net weight(kg): 85
Gross weight(kg): 105
