Home Ningbo Bestar Co., Ltd. 50CC/125CC/150CC Scooter With EEC (RS-816)

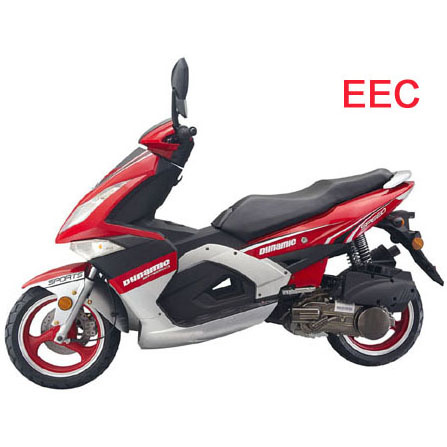

50CC/125CC/150CC Scooter With EEC (RS-816)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 /Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | RS-816 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Folded: | Unfolded |
| Fuel Tank Capacity: | 5-8L |
| Maximum Loading Capacity: | ≥120kg |
| Engine: | 4 Stroke |
| Certification: | EEC |
| Max Speed: | >50km/h |
| Displacement: | 50CC/125CC/150CC |
Product Description
See the following table| Nominal displacement | 50CC(EEC, EPA/DOT) | 125CC(EEC) | 150CC(EPA/DOT) |
| Actual displacement | 49.6CC | 124.6CC | 149.6CC |
| Engine style: | Signal Cylinder, 4-stroke, air-cooling | ||
| Bore*stroke(mm): | 39 X 41.5 | 52.4 X 57.8 | 57.4 X 57.8 |
| Compression Ratio: | 1: 10 | 1: 9.2 | 1: 9.2 |
| Max. Output power(Km/r/min): | 2.1/8000 | 5.6/7500 | 6.4/6500 |
| Rated power(kw/r/min): | 1.8/7000 | 4.8/7000 | 5.8/6000 |
| Max. Torque(N. m/r/min): | 2.7/6000 | 7.3/6000 | 8.3/6000 |
| Product size(mm): | 2030 X 700 X 1210 | ||
| Wheelbase(mm): | 1415 | ||
| Seat height(mm): | 840 | ||
| Ground clearance(mm): | 90 | ||
| Max. load(kg): | 150KG | ||
| Starting model: | Electric/Kick | ||
| Ignition: | C. D. I | ||
| Tank(L): | 6 | ||
| Fuel consumption: | 2.5(L/ 100km ) | 3.2(L/ 100km ) | 3.5(L/ 100km ) |
| Front brake: | Disk | ||
| Rear brake: | Drum | ||
| Battery: | 12V6Ah | ||
| Front tire: | 130/60-13 | ||
| Rear tire: | 120/70-12 | 130/60-13 | 130/60-13 |
| Max. speed(Km/h): | 45 | 80 | 85 |
| Net weight(kg): | 95 | 115 | 121 |
| Gross weight(kg) : | 110 | 132.5 | 135 |
| Container capcity: | 24pcs/ 20’ GP, 50pcs/ 40’ GP, 75pcs/ 40’ HC | ||
