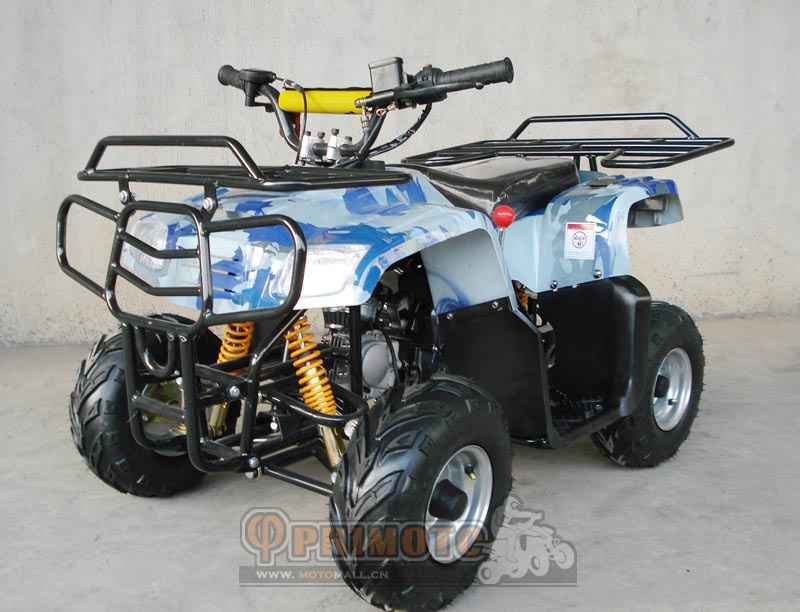

50cc-110cc ATV with Reverse Gear (SV-Q001)

Specifications

Prod Model:	SV-Q001

Product Description

50cc ATV with reverse gear, 50cc off road ATV, mini ATV with full chain cover,
50cc ATV with alarm system

1) Engine type: Single cylinder, 4-stroke, air-cooled
2) Starting system: Electric
3) Maximum power: 2. 3kW/7, 000rpm
4) Maximum speed: 40km/h
5) Ground clearance: 80mm
6) Transmission system: Chain
7) Braking method: Rear disc
8) Climbing ability: 17 degrees
9) Tire size: Front 145/70-6, rear 145/70-6
10) Cylinder bore stroke: 39. 0 x 41. 4mm
11) Displacement: 49ml
12) Seat height: 560mm
13) Cylinder: Single cylinder
14) Max. Loading: 75kg
15) Fuel: 93# mix of gasoline and oil
16) Rider capacity: 1
17) Methods of lubrication: Oil mist
18) Wheelbase: 750mm
19) Product dimensions: 1, 230 x 710 x 830mm
20) Weight: 42kg
