Specifications
Prod Model: |
CS-E9051 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Fuel: |
Electric |
Certification: |
CE |
Transmission System: |
Chain Drive |
Structure: |
Without Door |
Transmission Type: |
Automatic |
Engine Type: |
Electric Motor |
Product Description

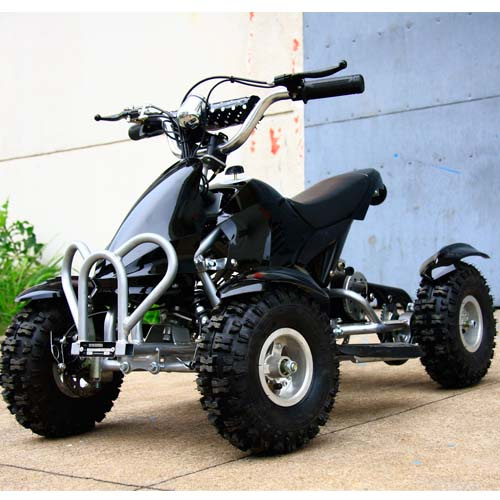

1. 36V 500W Electric mini ATV
2. 3PCS 12V12Ah lead batteries
3. Same model 800W is available
4. Forward & backward
Detailed specification:
1. Motor: 36V/500W
2. Battery: 3 *12 V, 12A, Lead-gel batteries, rechargeable battery, duration of charging 6-10 hours
3. Recharger: 80-240V. 50/60Hz
4. Life of storage battery: About three hundred cycles
5. Rated speed: 20 km/h
6. Controller: 36V/500W
7. Net weights: 40kg
8. Gross weight: 44kg
9. Load capacity: ≤ 40kg
10. Product size: 1020× 660× 650mm
11. Tire size: Front 4.10-4, Rear 4.10-4
12. Break: Rear/disc, front/disc
13. Front /Rear wheel: Aluminum
14. Front and rear spring
15. Speed: 18 - 20 kilometers/h
16. Transmission: Chain
17. Carton size: 99.5 x 58 x 43cm
18. Qty: 120PCS/20, 240PCS/40, 288PCS/40HQ
