North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dashboard:
Common Meter or LCD Meter
Controller:
500W /800W Brushless Controller
Max. Load:
200kgs
Climbing Angle:
20 Degrees
Charging Time:
8~10 Hours
Gross Weight:
105kgs
Net Weight:
95kgs
Brake:
Drum Brake
Front Fork:
Steel with Suspension
Throttle:
Twist Intelligent Speed Control
Product Description
500W-800W Electric Mobility Scooter with 2 Seat for Old People
Motor: Brushless hub motor 500W/800W Battery: A) 48V / 20Ah b) Sealed lead-acid battery Dashboard: common meter or LCD meter Controller: 500W /800W Brushless controller Wheel size: 16"x2.5 Max. Load: 200kgs Top speed: 25km/h Running distance: 60km (distance by riders weight,terrain,road sufurface etc.) Climbing angle: 20 degrees Gross weight: 105kgs Net weight: 95kgs With reverse gear With rheostat ( can adjust max speed from 0km/h to 25km/h) Different colors available
Electronic specification
Motor
Brushless hub motor 500W /800W
Battery
48V20Ah sealed lead-acid battery
Dashboard
common meter or LCD meter
Controller
500W /800W Brushless controller
Charger
110V60HZ /220V50HZ
Charging time
8~10 hours
Lamp
Common bulb
Performance & Main components
Max.speed
25km/h
Range
60km (distance by riders weight,terrain,road sufurface etc.)
Max load
200KGS
Tyres
16"x2.5
Brake
Drum brake
Front fork
Steel with suspension
Climbing angle
<= 20°
Throttle
Twist intelligent speed control
With reverse gear
With rheostat (adjust max speed from 0km/h to25km/h)
Packaging
Unit packaging
Each in a Carton Box
N.W/G.W
95kgs/105kgs(48V20AH)
Qty / Export carton
1 pc /ctn
Export carton dimension
196X71X110CM
1x20'footer FCL quantity
18 pcs
1x40'footer FCL quantity
38pcs
1X40'HQ
38 pcs

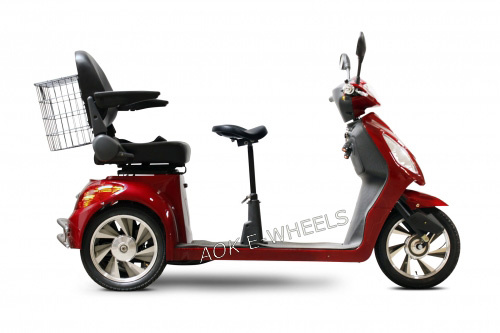

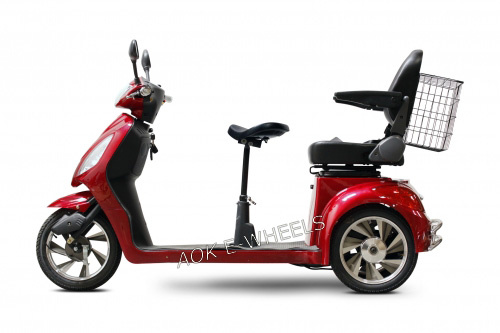

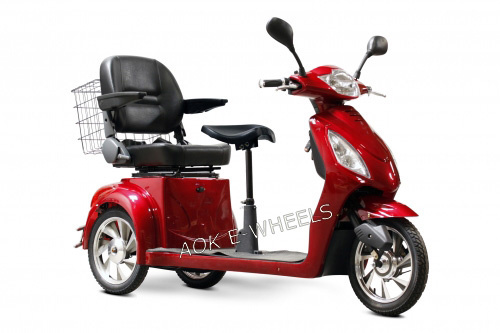

Product Show
Business Terms
1. The price above are based on FOB Ningbo(Zhejiang Province,China). 2:Lead time:15 working days for samples, 20~25 days for bulk. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted.
Business Principle
Credibility and Honesty is our only business principle! We look forward to establishing partnership with you in the near future. Contact us now. Please feel free to tell me if you have any questions. Thanks for your visit!
