Specifications
Prod Model: |
et-es15 electric scooter |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Motor Size: |
Brush |
Charger: |
110V-220V |
Carton Packing: |
Carton or Carton with Poly Foam |
Delivery Time: |
15 Days for Sample |
Running Distance: |
<45KM |
Motor: |
Brush |
Max Speed: |
20-40km/h |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Voltage Of Battery: |
36V |
Power: |
<200W |
Certification: |
ISO |
Maximum Loading Capacity: |
75-120kg |
Folded: |
Folded |
Charging Time: |
6-8h |
Part: |
Battery |
Brake: |
Back Drum Brake |
Wheel Hub: |
Rubber |
Wheel Size: |
10 |
Product Description

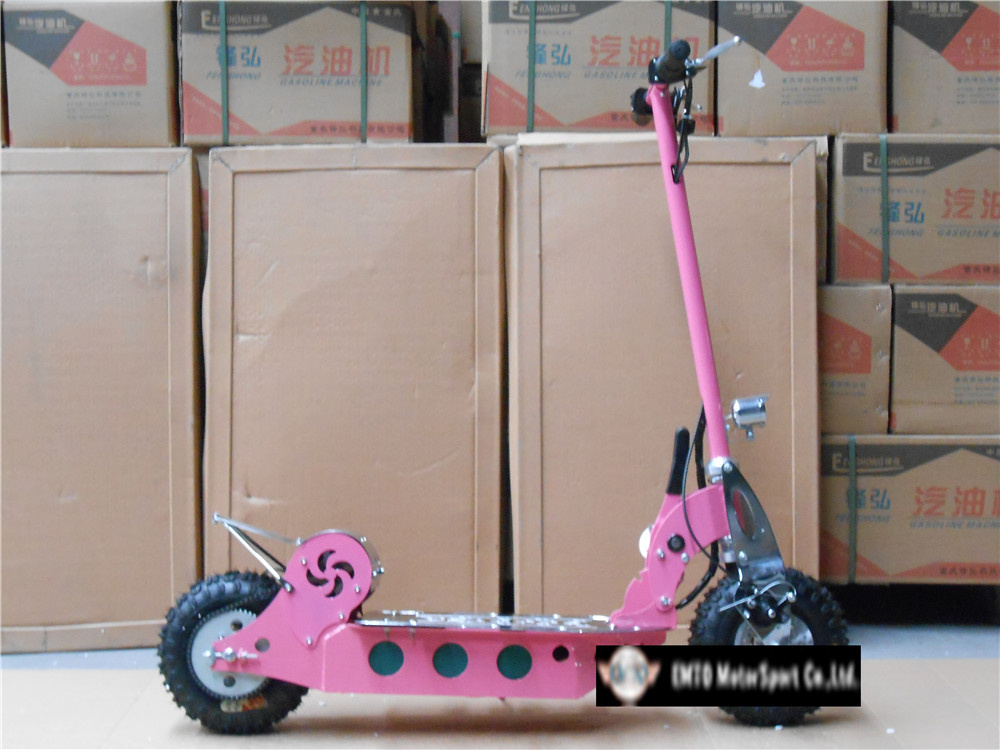

Electric scooter
Et-es15
Bodywork: Wood deck
Wheel: Front and rear 10" (rubber tyre)
Handle bar and brake bar: Plastic handle bar and all aluminum brake bar
Starting system: Electric start
Drive system: Chain drive
Brake system: Front and rear disc brake with power off
Charger: 110V-220V
Max Speed: 35km/h
Battery: 3pcs, 36v/7ah lead-acid batteries
Motor: 500W
Charging period: 4-8 hours
Load Capacity: 110kg
G. W/N. W: 35kg/33kg
Product Size: 107*46*101cm
Carton Size: 108*28*43cm
Qty: 210/20", 440pcs/40", 528pcs/40HQ
Available colors: Black, blue, silver, red, yellow, orange, optional
Cotors available | 1000W (CE), 800W (CE) or 500W (EEC & CE) |
Battery | 12V / 12Ah X 3pcs lead acid (li-ion optional) |
Charger | 110-240V Smart Charger |
System | 2-color LED status indicator |
Controller | Smart Power |
Top Speed | 35km/h |
Range per full charge | 20km(500W), 14km(800W), 10km(1000W) |
Drive system | Chain |
Brakes | Front & Rear Disc |
Wheels | Aluminimum alloy |
Tires | 3.0-4 Pneumatic |
Handlebars | Billet Stem - 20" Race Bars |
Forks | Full Suspension Design |
Folding | Yes |
Deck of EVO mini scooter | ABS Resin (aluminium alloy optional) |
Frame | High-tensile Steel |
Net Weight | 38~40kg |
Loading capacity | 125kg |
Packing Size | 110X32X47CM |
Container capacity | 160units/20'GP, 320units/40'GP, 360units/40'HC |
