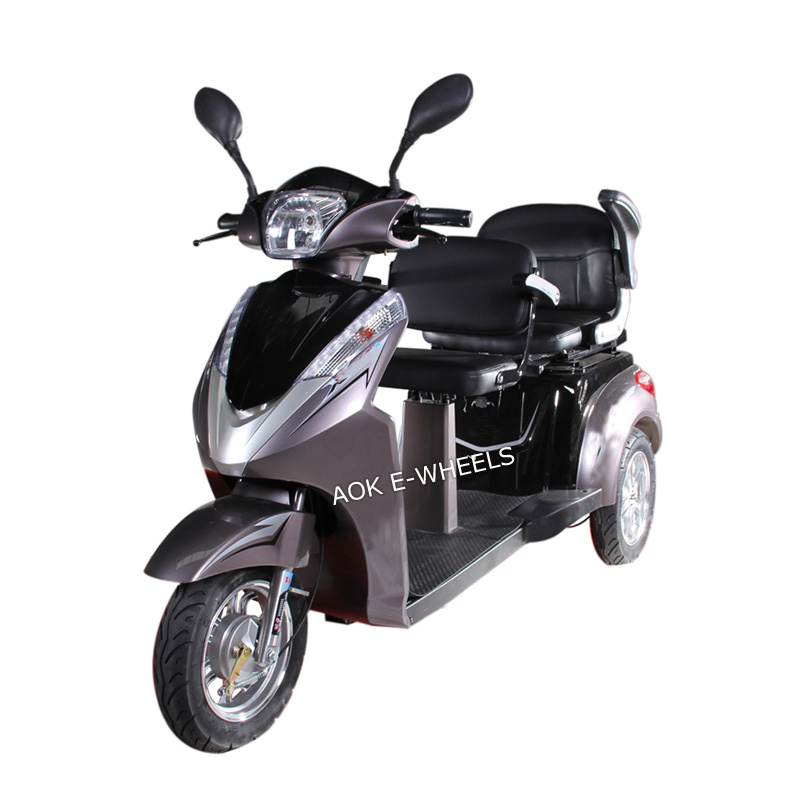

500W/700W Two Seat Mobility Scooter with Deluxe Saddle (TC-022B)

500W/700W Two Seat Mobility Scooter with Deluxe Saddle (TC-022B)
Price: US $ 628-691/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Specifications

Prod Model: TC-022B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charging Time: 8~10 Hours
Max Load: 260kgs
Brake: Front Drum Brake/ Rear Drum Brake
Climbing Angle: <= 25°
With 3 Different Kinds Of Max Speed: (1speed:9km/H,2speed:15km/H,3speed:25km/H)
Front Fork: Hydraulic Pressure
N.W/G.W: 90kgs/100kgs(48V20ah)
Export Carton Dimension: 182X77X80cm
Controller: 500W Brushless Controller
Throttle: Twist Intelligent Speed Control

Product Description

500W/700W Two Seat Mobility Scooter with Deluxe Saddle (TC-022B)

Electronic specification:
1.Motor: brushless hub motor 500W /700W
2.Battery: 48V20Ah sealed lead-acid battery
 All battery with electric protection circuit
3.Dashboard: common meter
4.Controller: 500W Brushless controller
5.Charger: 110V60HZ
6.Charging time: 8~10 hours
7.Lamp: LED

Performance & Main components:
1. Max.speed: 25km/h
2. Range: 60km(distance by riders weight,terrain,road sufurface etc.)
3.Max load: 260KGS
4.Tyres: 300-10
5.Front brake: drum brake
6:Rear brake: drum brake
7.Climbing angle: <= 25°
8.With 3 different kinds of max speed
(1speed:9km/h,2speed:15km/h,3speed:25km/h)
9.With reverse switch ,LED lights and rear basket
10.Front fork: hydraulic pressure
11.Throttle: Twist intelligent speed control

Packaging:
Unit packaging: Each in Color Box
Packing: Each in a carton box
N.W/G.W: 90kgs/100kgs(48V20AH)
Qty / Export carton: 1 pc /ctn
Export carton dimension: 182X77X80CM
1x40'footer FCL quantity: 57pcs
1X40'HQ: 57 pcs




Electronic specification:

Motorbrushless hub motor 500W /700W
Battery48V20Ah sealed lead-acid battery
All battery with electric protection circuit
Dashboardcommon meter
Controller500W Brushless controller
Charger110V60HZ
Charging time8~10 hours
LampLED


Performance & Main components:

Max speed25km/h
Range60km
(distance by riders weight,terrain,road surface etc.)
Max load260KGS
Tyres300-10
Front brakedrum brake
Rear brakedrum brake
Climbing angle<= 25°
DerailleurWith 3 different kinds of max speed
(1speed:9km/h,2speed:15km/h,3speed:25km/h)
With reverse switchYES
With LED lightsYES
With rear basketYES
Front forkhydraulic pressure
ThrottleTwist intelligent speed control


Packaging:

Unit packagingEach in Color Box
PackingEach in a carton box
N.W/G.W90kgs/100kgs(48V20AH)
Qty / Export carton1 pc/ctn
Export carton dimension182X77X80CM
1x40'footer FCL quantity57pcs
1X40'HQ57 pcs



MOQ:20PCS


Business Terms:

1.The price above are based on MOQ.
2.Lead time:7 days for sample order.25 days for one container.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.

Payment Terms:

1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.

Warranty:

8 months for battery;
1 year for motor;
1 year for controller;
1 year for charger.

(The warranty is based on broken not made by human being.)


If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.

Welcome to contact!0086-13072780901
