North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charging Time:
8~10 Hours
Max Load:
260kgs
Brake:
Front Drum Brake/ Rear Drum Brake
Climbing Angle:
<= 25°
With 3 Different Kinds Of Max Speed:
(1speed:9km/H,2speed:15km/H,3speed:25km/H)
Front Fork:
Hydraulic Pressure
N.W/G.W:
90kgs/100kgs(48V20ah)
Export Carton Dimension:
182X77X80cm
Throttle:
Twist Intelligent Speed Control
Controller:
500W Brushless Controller
Product Description

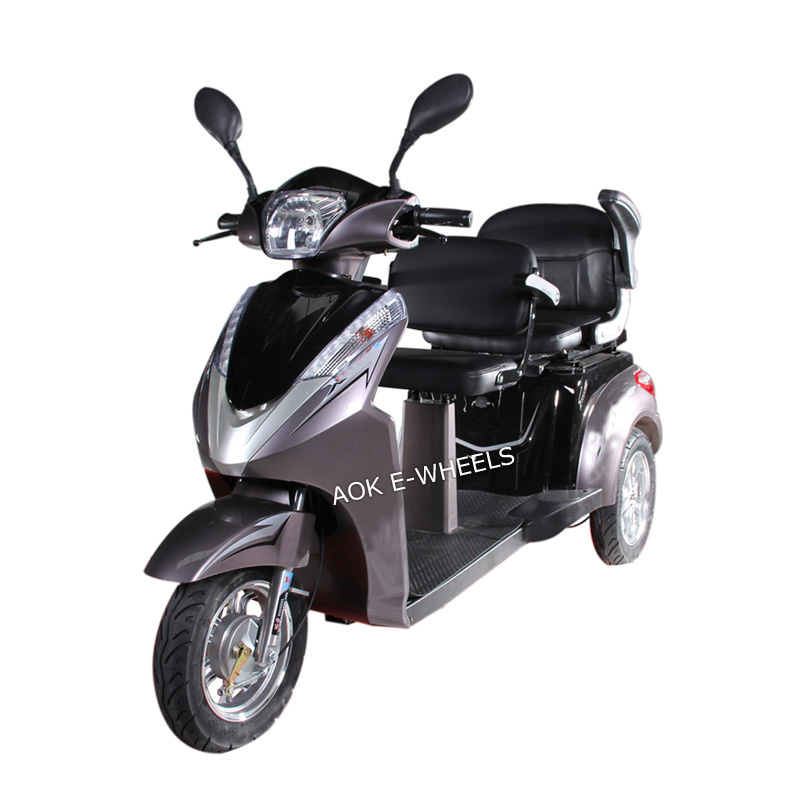

500W/700W Motor Electric Disabled Scooter for Passenger (TC-022B)
Electronic specification: 1.Motor: brushless hub motor 500W /700W 2.Battery: 48V20Ah sealed lead-acid battery All battery with electric protection circuit 3.Dashboard: common meter 4.Controller: 500W Brushless controller 5.Charger: 110V60HZ 6.Charging time: 8~10 hours 7.Lamp: LED
Performance & Main components: 1. Max.speed: 25km/h 2. Range: 60km(distance by riders weight,terrain,road sufurface etc.) 3.Max load: 260KGS 4.Tyres: 300-10 5.Front brake: drum brake 6:Rear brake: drum brake 7.Climbing angle: <= 25° 8.With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h) 9.With reverse switch ,LED lights and rear basket 10.Front fork: hydraulic pressure 11.Throttle: Twist intelligent speed control
Packaging: Unit packaging: Each in Color Box Packing: Each in a carton box N.W/G.W: 90kgs/100kgs(48V20AH) Qty / Export carton: 1 pc /ctn Export carton dimension: 182X77X80CM 1x40'footer FCL quantity: 57pcs 1X40'HQ: 57 pcs
Electronic specification:
Motor
brushless hub motor 500W /700W
Battery
48V20Ah sealed lead-acid battery All battery with electric protection circuit
Dashboard
common meter
Controller
500W Brushless controller
Charger
110V60HZ
Charging time
8~10 hours
Lamp
LED
Performance & Main components:
Max speed
25km/h
Range
60km (distance by riders weight,terrain,road surface etc.)
Max load
260KGS
Tyres
300-10
Front brake
drum brake
Rear brake
drum brake
Climbing angle
<= 25°
Derailleur
With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h)
With reverse switch
YES
With LED lights
YES
With rear basket
YES
Front fork
hydraulic pressure
Throttle
Twist intelligent speed control
Packaging:
Unit packaging
Each in Color Box
Packing
Each in a carton box
N.W/G.W
90kgs/100kgs(48V20AH)
Qty / Export carton
1 pc/ctn
Export carton dimension
182X77X80CM
1x40'footer FCL quantity
57pcs
1X40'HQ
57 pcs
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.)
If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
