Charging Time:
8~10 Hours
Lamp:
LED
Max Load:
120kgs
Front Brake:
Disk Brake
Rear Brake:
Drum Brake
Climbing Angle:
<= 25°
Front Fork:
Front Fork
With 3 Different Kinds Of Max Speed:
(1speed:9km/H,2speed:15km/H,3speed:25km/H)
N.W/G.W:
90kgs/100kgs(48V20ah)
Export Carton Dimension:
140X77X73cm
Product Description

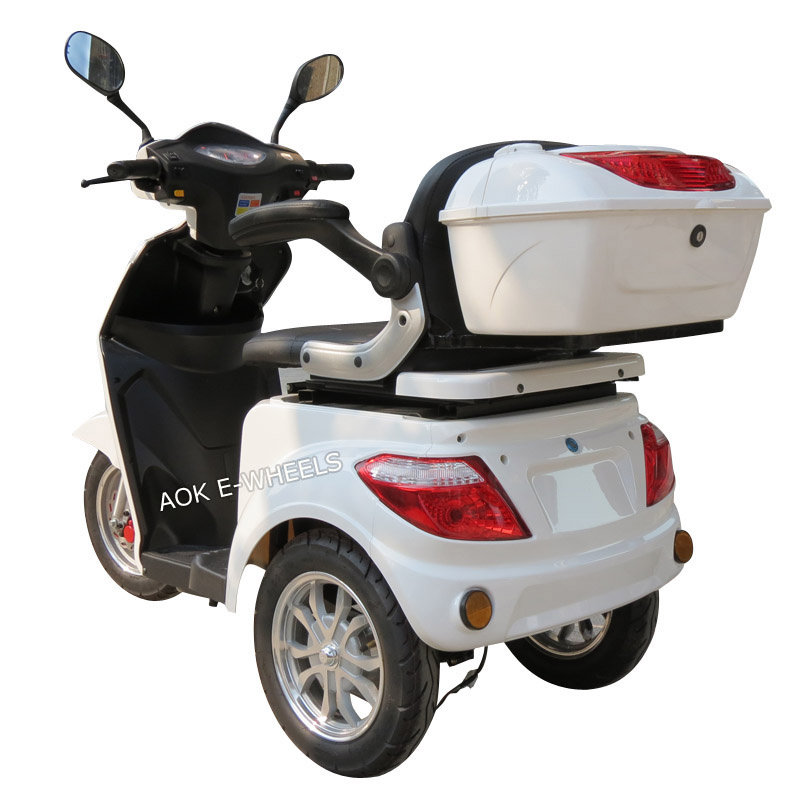

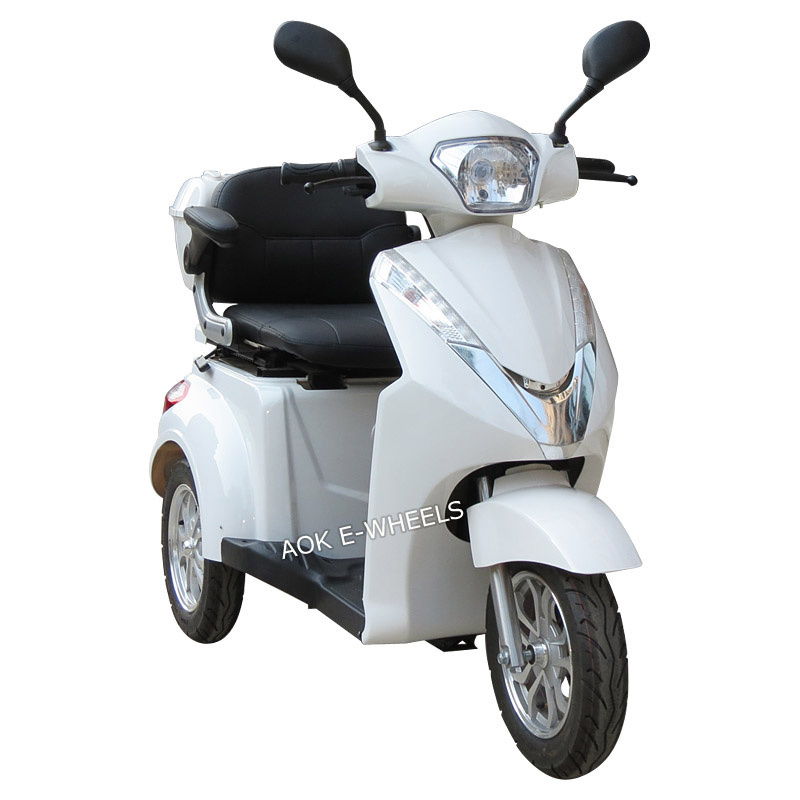

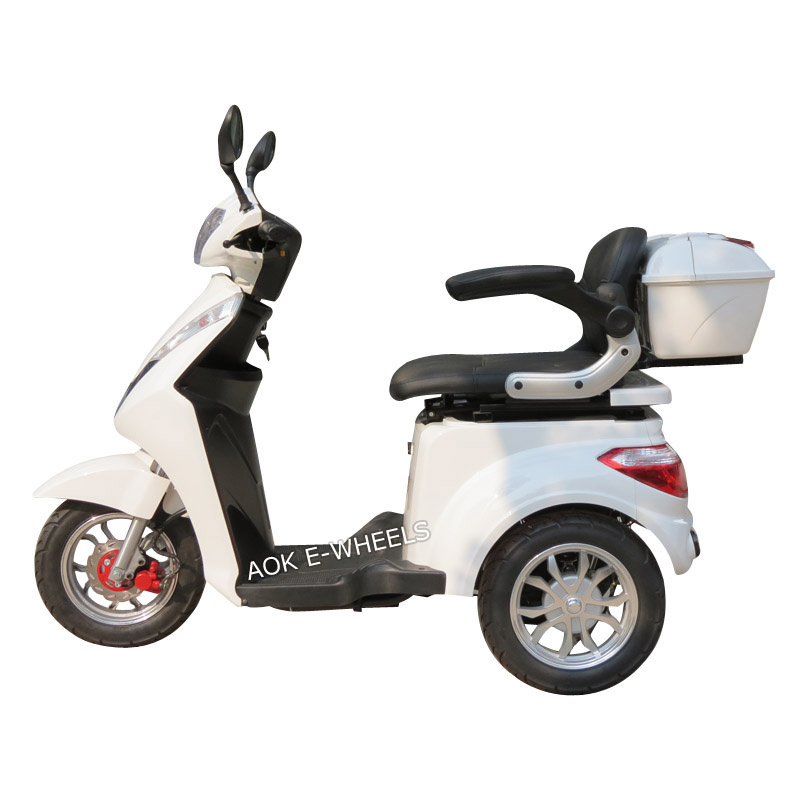

500W/700W Electric Mobility Scooter for Old People with Disk Brake (TC-022A)
Electronic specification: 1.Motor: brushless hub motor 500W /700W 2.Battery: 48V20AH/60V20AH sealed lead-acid battery All battery with electric protection circuit 3.Dashboard: common meter 4.Controller: 500W Brushless controller 5.Charger:110V60HZ 6.Charging time: 8~10 hours 7.Lamp: LED
Performance & Main components: 1. Max.speed: 25km/h 2. Range: 70km(distance by riders weight,terrain,road surface etc.) 3.Max load: 120KGS 4.Tyres: 300-10 5.Front brake: disk brake 6:Rear brake: drum brake 7.Climbing angle: <= 25° 8.With reverse gear, LED lights and rear storage box or basket 9.Front fork: c 10.Throttle: Twist intelligent speed control 11.With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h)
Packaging: Unit packaging: Each in Color Box Packing: Each in a carton box N.W/G.W: 90kgs/100kgs(48V20AH) Qty / Export carton: 1 pc /ctn Export carton dimension: 140X77X73CM 1x20'footer FCL quantity: 36 pcs 1x40'footer FCL quantity: 72pcs 1X40'HQ: 72 pcs
Electronic specification:
Motor
brushless hub motor 500W /700W
Battery
48V20AH/60V20AH sealed lead-acid battery All battery with electric protection circuit
Dashboard
common meter
Controller
500W Brushless controller
Charger
220V50HZ
Charging time
8~10 hours
Lamp
LED
Performance & Main components:
Max speed
25km/h
Range
70km (distance by riders weight,terrain, road surface etc.)
Max load
120KGS
Tyres
300-10
Front brake
disk brake
Rear brake
drum brake
Climbing angle
<= 25°
With reverse gear
YES
With LED lights
YES
With rear storage box or basket
YES
Front fork
hydraulic pressure
Throttle
Twist intelligent speed control
With 3 different kinds of max speed
(1speed:9km/h,2speed:15km/h,3speed:25km/h)
Packaging:
Unit packaging
Each in Color Box
Packing
Each in a carton box
N.W/G.W
90kgs/100kgs(48V20AH)
Qty / Export carton
1 pc/ctn
Export carton dimension
140X77X73CM
1x20'footer FCL quantity
36 pcs
1x40'footer FCL quantity
72pcs
1X40'HQ
72 pcs
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.) If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
