Prod Model: |
TC-018B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Controller: |
500W Brushless Controller |
Charger: |
110V60Hz/220V50Hz |
Lamp: |
LED |
Front Fork: |
Hydraulic Pressure |
Climbing Angle: |
<=25 Degrees |
Throttle: |
Twist Intelligent Speed Control |
Net Weight: |
90kgs |
Gross Weight: |
100kgs |
Unit Packaging: |
Each in a Carton Box |
Carton Dimension: |
140X77X73cm |
Product Description

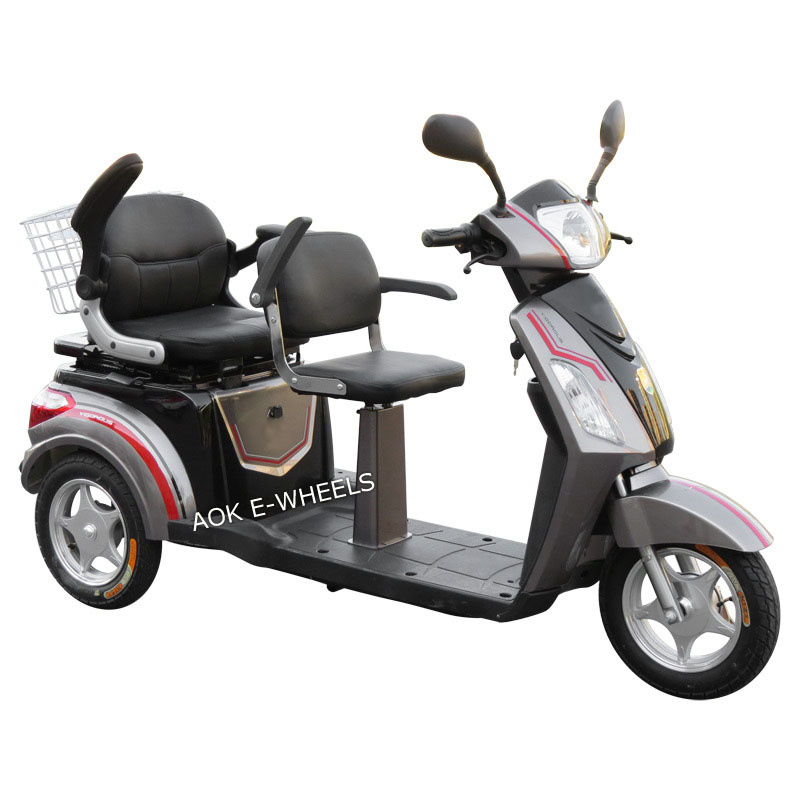

500W/700W Motor Deluxe Electric Mobiblity Scooter for Old People
Model:TC-018B
Motor:Bushless hub motor 500W
Battery:48V 20AH sealed lead-acid battery
Charger:110V60HZ/220V50HZ
Controller:500W brushless controller
Max.speed :25km/h
Range:60km(distance by riders weight,terrain,road sufurface etc.)
Max load:260kgs
Specification
Specification: | Motor | Bushless hub motor 500W/700W |
Battery | 48V 20AH sealed lead-acid battery |
Dashboard | Common meter |
Controller | 500W brushless controller |
Charger | 110V60HZ/220V50HZ |
Charging time | 8~10 hours |
Lamp | LED |
Performance & Main components
Performance & Main components: | Max.speed | 25km/h |
Range | 60km(distance by riders weight,terrain,road sufurface etc.) |
Max load | 260kgs |
Tyres | 300-10 tubless |
Front brake | Drum brake |
Front fork | Hydraulic pressure |
Rear brake | Drum brake |
Climbing angle | <=25 degrees |
Throttle | Twist intelligent speed control |
With reverse switch ,LED lights and rear basket |
With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h) |
Different colors are available |
Packaging&Delivery
Packaging Details: | Unit packaging | Each in a carton box |
Net weight | 90kgs |
Gross weight | 100kgs |
Export carton dimension | 140x77x73cm |
Delivery Details: | 15 working days for samples, 20~25 days for bulk. |
Container
1x20'footer FCL quantity : 30 pcs
1x40'footer FCL quantity : 57pcs
1X40'HQ: 57 pcs
