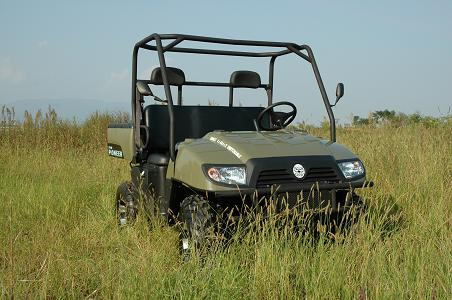

500cc UTV with EEC/EPA (FY-UV500)

Specifications

Prod Model:	FY-500

Product Description

FY-500

Product dimensions: 2, 850 x 1, 550 x 1900mm
Minimum turning radius: 4650mm
Transmission: Shaft drive 4x4 and 4x2 switchable
Wheelbase: 1820mm Wheel span: (a) Fr: 1036mm (b) Rr: 1040mm
Brake type: F: Disc brake R: Disc brake
Minimum ground clearance: 335mm
Suspension: 4-wheel Independent Suspension
The tire: Front(Aluminium rim): 27*8-12
Rear: 27*11-12
Engine specifications:
Single cylinder water-cooled, 4 valves, 4 stroke, gasoline engine.
Front and rear shaft transmission
Electrical and pull start
CVT with engine brake
With 2 forward gears ( H & L ), parking, and reverse gear, with gear position display
With speedometer output
Capacities:
Fuel tank: 33L
Oil consumption for 100 kilometers: 9.8L
Battery: 12V 24Ah
Maximum speed: 60kph
Boxcargo bed: 1540*1040*345mm
Maximum loading capacity: 300kgs
Net weight: 540kgs
Package: Fiberboard
Carton Size: 2950*1700*1150mm
Loading Capacity: 4pcs/20FT 8pcs/40GP 8pcs/40HQ
