Specifications
Prod Model: |
GBT500L-S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
500CC UTV With 4 Seats (Gbt500L-S): |
Transmission/Final Drive: Automatic CVT (Toothed V |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
500CC |
Product Description

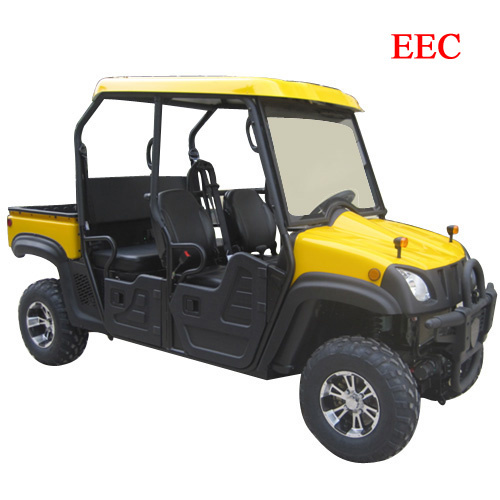

500CC UTV WITH 4 SEATS (GBT500L-S)
ENGINES
Engine Type: Single-cylinder
Displacement: 493 / 500
Fuel System: Carbureted/EFI
Cooling: Water-cooled
Max Speed: 75 km/h
Starter: Electric starter
DRIVETRAIN
Transmission/Final Drive: Automatic CVT (toothed V-belt) & R/N/H/L, Shaft
Drive System: Selectable 4X2 / 4X4
SUSPENSION
Front Suspension: McPherson independent suspension
Rear Suspension: Double A-arm independent suspension
BRAKES
Front/Rear Brakes: Dual hydraulic disc
Parking Brake: Hand-Actuated
TIRES/WHEELS
Front Tires / Model: ATV 25 x 8 - 12
Rear Tires / Model: ATV 25 x 10 - 12
Wheels: STEEL
DIMENSIONS
Wheelbase (mm/in): 2450 / 96.5
Dry Weight(kg/lbs): 620 / 1364
Overall Vehicle Size (LxWxH) (mm/in): 3345*1290*1865 / 131.7*50.8*73.4
Ground Clearance(mm/in): 210 / 8.27
CAPACITIES
Fuel Capacity(L/gal): 20L
Loading Quantity(PCS): 20FCL: 2PCS 40HQ: 8PCS
EEC NO: E11*2002/24*1035*01
