Specifications
Prod Model: |
500UTV-A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
500ccutv (Gbt500UTV-a): |
471CC, Water Cooled, 4-Valve, 4-Stroke, 1-Cylinde |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Two Side Doors |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
500CC |
Product Description

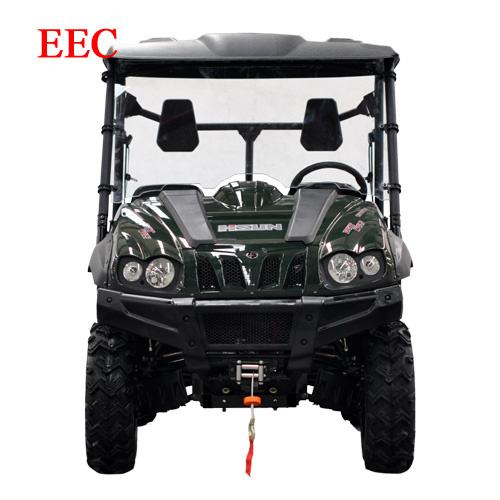

500CCUTV (GBT500UTV-A)
GBT500UTV EEC
Specifications
ENGINE
Type: 471CC, Water cooled, 4-valve, 4-stroke, 1-cylinder
Bore x Stroke: 84.5mm x 84mm
Compression Ratio: 9.4: 1
Carburetion: PD36J
Ignition: CDI
Starting: Electric start
Transmission: L-H-N-R
Drive Train: Axle
CHASSIS
Suspension: Independent double swing arm
Suspension/Rear: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Dual ventilated hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 3010mm x 1460mm x 1940mm
Seat Height: 790mm
Wheelbase: 1890mm
Ground Clearance: 245mm
Fuel Capacity: 30L
Dry Weight: 543kg
OTHER
Lighting: 12V35W/35W x 2(front); 12V. 5W/21W x 1(rear)
Warranty: 12 months
