Home Wuyi Zhaochen Sport Appliance Co., Ltd. 500cc Go Kart Good Design (ZC-GK-10)

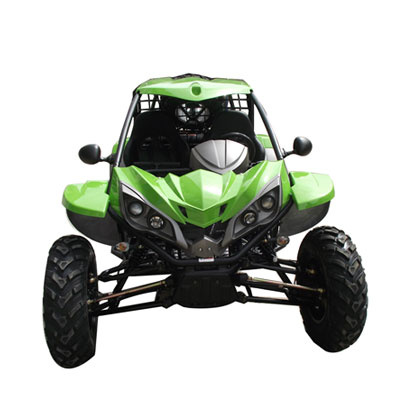

500cc Go Kart Good Design (ZC-GK-10)
| Price: | US $ 4100-4250/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 3/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | ZC-GK-10 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacements(Cc): | 500cc |
| Colors: | Optional |
| Displacement: | >400CC |
| Maximum Speed: | >90 km/h |
| Transmission: | Shaft |
| Start-up: | Electric |
| Certification: | EEC |
Product Description
ZC-GK-10Engine: CF188, liquid cooled, single cylinder, 4-stroke
Rated power: 14.5/7000 kw/rpm
Maximum torque: 24.5N. M or 5500rpm
Max speed: 95km/h
Bore, stroke: 87.5 X 82mm
Wheel base: 2400 mm
Front wheel: 25X8-12
Ground clearance: 320mm
Rear wheel: 25X10-12
Dimension: 3035X1685X1465(mm)
G. W. /N. W.: 438kgs/398kgs
Packing dimension: 2.83X1.645X0.867(mm)
Brakes(F/R): Hydraulic disc
Fuel tank capacity: 20L
Container load: 4PCS/20"GP, 12PCS/40"HQ
| Art No: | ZC-GK-10 | ||
| Engine type: | 500CC/600CC 4WD,air-cooled,1-cyclinder,4 stroke | ||
| transmission system: | shaft drive | ||
| Displacement: | 500CC/600CC | ||
| Fuel: | GAS | ||
| starting: | Electric | ||
| max torque: | 24.5n.m/5500rpm | ||
| Max Speed: | 95km/h | ||
| Front/rear Tire : | 25*8-12/25*10-12 | ||
| Brake: | hydraulic disk brake | ||
| fuel capacity: | 20L | ||
| Net/Gross weight : | 398kg/438kg | ||
| Final drive: | chain | ||
| body size: | 3035*1685*1465mm | ||
| Carton size: | 2830*1645*867mm | ||
| container: | 4pcs/20GP,12pcs/40HQ | ||
| MOQ: | 4pcs | ||
| Port: | Ningbo | ||
| cetification: | CE | ||
| Color: | Blue,black,red,..optional | ||
| Packaging Details: | export standard | ||
| Delivery Detail: | 20-40days | ||
