Specifications
Product Description

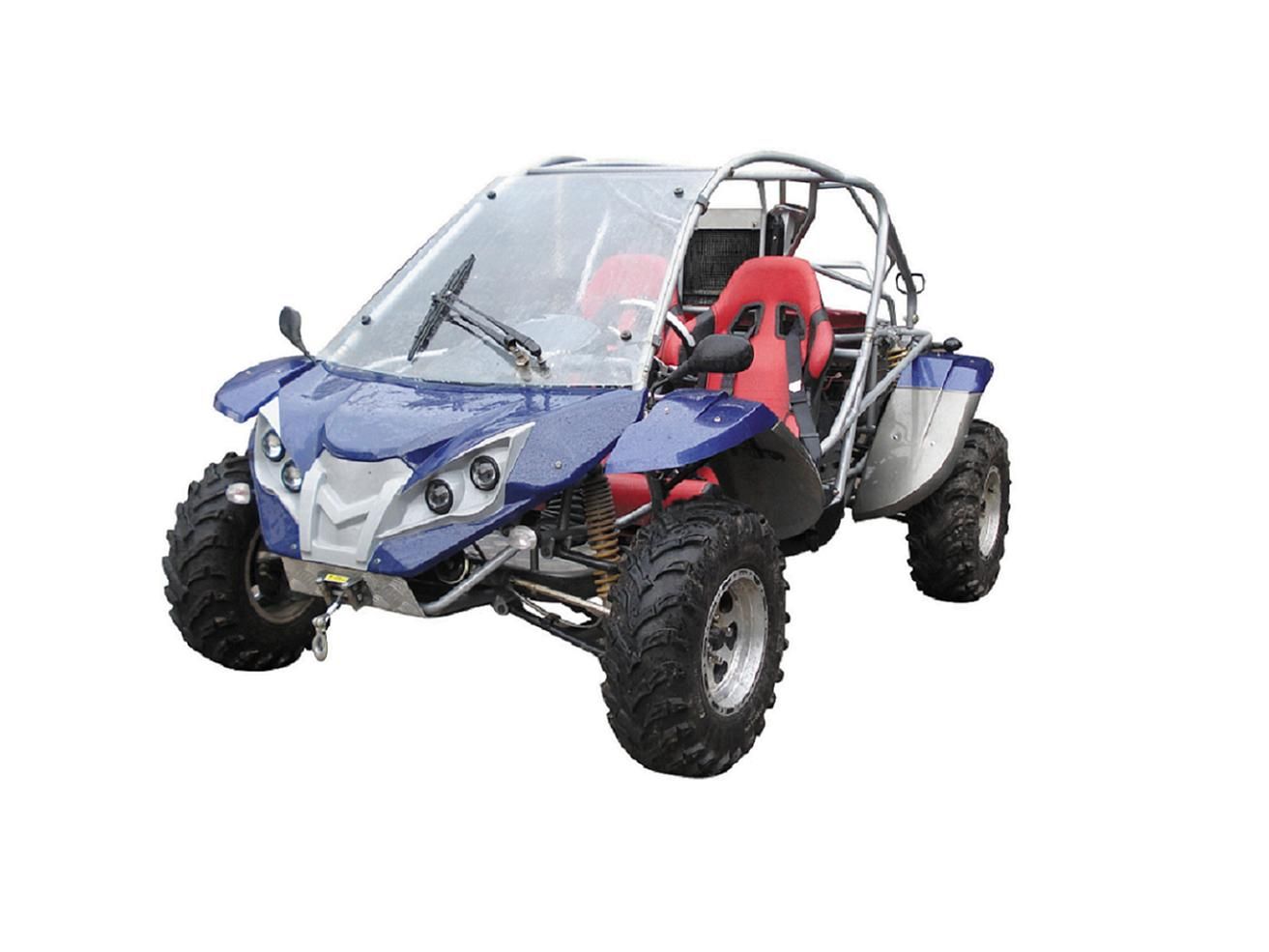

DF500GK-C
1) Engine type: Single cylinder, 4-stroke, water-cooled, CVT, R/N/L/H
2) Displacement: 498.6cc
3) Max Power: 24KW/6300r/min
4) Max Torque: 40N. M/4800r/min
5) Ignition system: CDI
6) Start mode: Electric
7) Compression ration: 10.2: 1
8) Battery: 12V 20Ah
9) Fule tank capacity: 30L
10) Economical oil exhaust(L/100km): 5
11) Max speed: 80km/h
12) Transmission: Dual independent shaft drive on-command2WD/4WD
13) Brake Type: Hydraulic disc brake / Hydraulic disc brake
14) Wheelbase: 2090mm
15) Ground clearance: 310mm
16) Tires (front / rear): 25 x 8-12 / 25 x 10-12
17) N. W.: 440kgs
G. W.: 530kgs
18) Product dimension: 2840*1670*1500mm
19) Qty/20FT: 8units
Qty/40GP: 16units
