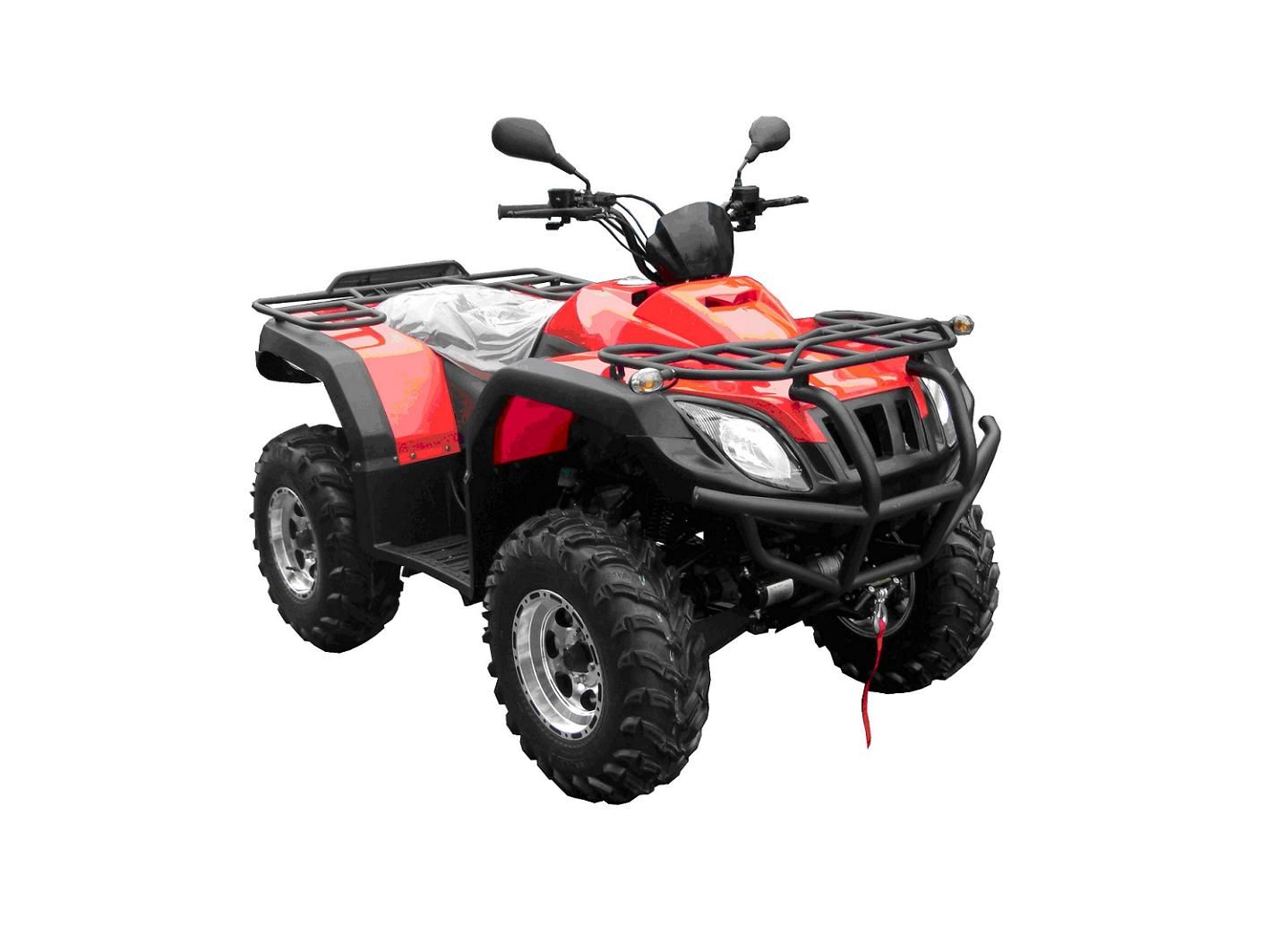

500cc ATV / Quad (4*4) with EEC ( DF500ATV-A )

Specifications

Prod Model:	DF500ATV-A

Product Description

DF500 ATV-A EEC
1) Engine type: Single cylinder, 4-stroke, water-cooled, CVT, R/N/L/H
2) Displacement: 498.6cc
3) Max Power: 24KW/6300r/min
4) Max Torque: 40N. M/4800r/min
5) Ignition system: CDI
6) Starter mode: Electric
7) Compression ration: 10.2: 1
8) Battery: 12V 20Ah
9) Fule tank capacity: 14L
10) Economical oil exhaust(L/100km): 5
11) Max speed: 80km/h (Europe standard: 75km/h)
12) Transmission: Dual independent shaft drive, on-command2WD/4WD
13) Brake Type: Hydraulic disc brake / Hydraulic disc brake
14) Wheelbase: 1350mm
15) Ground clearance: 290mm
16) Tires (front / rear): 25 x 8-12 / 25 x 10-12
17) N. W.: 350kgs
G. W.: 400kgs
18) Product dimension: 2230*1190*1260mm
19) Carton dimension ( Don't take down wheels ): 2250*1225*1080
Carton dimension ( Take down wheels ): 2250*1160*920
20) Qty/20FT: 8units ( take down wheels: 10 units )
Qty/40GP: 18units ( take down wheels: 20 units )
