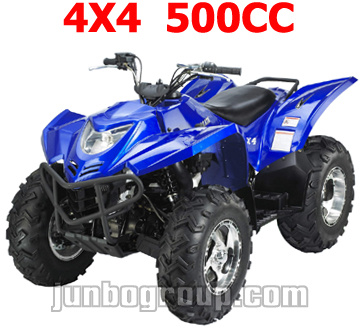

500cc ATV, 4x4 Quad with Popular Design 4wd Quad Bike (DR794)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR794 |
|---|---|
| Engine Type: | 4 Stroke |
| Displacement: | >400CC |
| Transmission Type: | Automatic |
| Transmission System: | Shaft Drive |
| Certification: | EEC |
Product Description
Pls take your time to browse our web site for more information about this product.ENGINE Type: 500cc, Water cooled, 4-stroke, 1-cylinder
Bore x Stroke: 84.5mm x 84mm
Max. Torque: 42.5N. M/4200min
Max. Power: 13.0kw/5000min
Compression Ratio: 9.4: 1
Carburetion: PD33J-A/KINZO
Max. Speed: 75km/h
Ignition: CDI
Starting: Electric/pull
Transmission: L-H-N-R-P
Drive Train: Axle
Front Suspension: Independent double swing arm
Rear Suspension: Independent swing arm
Front Brake: Dual ventilated hydraulic disc
Rear Brake: Ventilated Hydraulic disc
Front Tires: AT25 x 8-12' radial
Rear Tires: AT25 x 10-12' radial
Seat Height: 820mm
Wheelbase: 1250mm
Ground Clearance: 275mm
Fuel Capatity: 13.6L
Dry Weight: 320kg
L x W x H: 1990 x 1060 x 1150mm
Conveyance:
Qty/20' FCL: 10PCS
Qty/40' FCL: 24PCS
Qty/40' HQ: 36PCS
