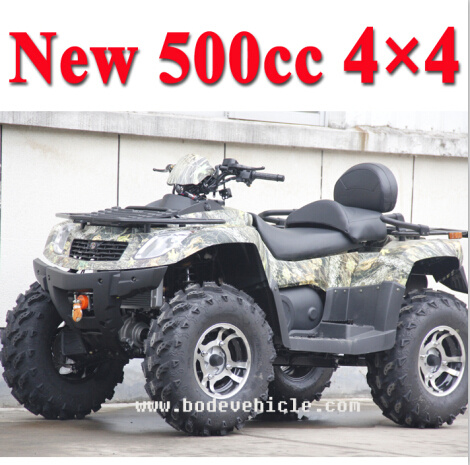

500cc 4 Wheeler ATV 4X4 Driving

Specifications

Prod Model:	MC-392
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Start:	Electric Start
Transmission System:	Shaft Drive
Transmission Type:	Automatic
Certification:	ISO9001
Engine Type:	4 Stroke
Fuel:	Gas / Diesel
Displacement:	>400CC
Structure:	Without Door
Maximum Speed:	>75 km/h
Brake Type:	Disc Brake
Condition:	New
Brand:	Bode
Power:	500cc

Product Description

EEC 500cc Quad Bike 4X4 Specification


1. ENGINE TYPE: 4 Stroke, V-Twin Cylinder, SOHC
2. Engine Cooling: Liquid-Cooled
3. MAX. POWER(KW/rpm): 26.5KW/7000rpm
4. Standard Power: 25KW/6500rpm
5. MAX. TORQUE(NM/rpm): 45N. M/5500rpm
6. MAX. SPEED: ≥ 85Km/h
7. BORE STROKE: 72.5mm X 66.8mm
8. DISPLACEMENT: 552ml
9. COMPRESSION RATIO: 10.3: 1
10. Fuel System: Electronic Fuel Injection
11. IGNITION: Direct current electronic ignition
12. SPARK PLUG: DR8EA
13. STARTING: Electric Start
14. TRANSMISSION: CVT
15. BRAKE FRONT/REAR: Disc Brake
16. BRAKE REAR: Disc Brake
17. BRAKE DISTANCE: 7m/30km/h
18. FRONT SUSPENSION: Macphersan Independent
19. REAR SUSPENSION: Double Wishbone
20. SHOCK ABSORBER(F/R): Spring and Damp Shock Absorbor
21. SHOCK ABSORBER: Spring and Damp Shock Absorbor
22. BATTERY: 12V/14AH
23. ENGINE OIL: 1.5L
24. TRANSMISSION OIL: 0.8L
25. REAR OIL: 0.3L
26. FUEL: 93# Unleaded Gasoline
27. FUEL CAPACITY: 13.5L
28. Climbling capacity: 25°
29. TURNING RADIUS: 3400mm
30. FRONT TIRE: AT26X9-12
31. REAR TIRE: AT26X11-12
32. OVERALL: 2260 X 1180 X 1270mm
33. WHEELBASE(mm): 1460mm
34. GROUND CLEARANCE: 300mm
35. NET WEIGHT(kgs/lbs): 355kgs
36. Standard Colors: Red, Blue, Black.
37. Container Quantity:
1 X 20'FT Container: 8 units.
1 X 40'HQ Container: 25 units.
