Specifications
Prod Model: |
WS-E9053 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission Type: |
Automatic |
Engine Type: |
2 Stroke |
Structure: |
Without Door |
Transmission System: |
Chain Drive |
Fuel: |
Electric |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Power: |
500-800W |
Certification: |
CE |
Condition: |
New |
Displacement: |
800W |
Brand: |
OEM |
Product Description
New Electric quad bikes ATV - a first in China . NO PETROL, SERVICING, BATTLING TO START.
MORE POWERFUL THAN 110CC This is for children aged 3 to 12 years - or those that want some more speed.
Maximum weight is 80kg, but it would be more suitable for a max weight of about 60kg.
my customer is 90kg and it carried me with ease!
20km/h. No petrol no oil no grease. Simple turn get on and go.
The quad bikes have disk brakes, ignition key, forward and reverse, grip accelerator (safety foot pedal must be activated for quad to go).
These units are also suitable for disabled children - very cool.
We can supply Potentiometer free of charge - which will allow you to govern the speed .
Colours: Red, Blue, Green or Black
Price includes batteries, charger and toolkit.
It takes about 30 minutes to assemble .
1. Motor: 36V/500W
2. Battery: 3 *12 V, 12A, Lead-gel batteries, rechargeable battery, duration of charging 6-10 hours
3. Recharger : 80-240V.50/60Hz
4. Life of storage battery : About three hundred cycles
5. Rated speed: 20 km/h
6. Controller : 36V/500W
7. Net weights: 40kg
8. Gross weight : 44kg
9. Load capacity : ≤40kg
10. Product size: 1020×660×650mm
11. Tire size: Front 4.10-4 ,Rear 4.10-4
12. Break: rear/disc, front/disc
13. Front /Rear wheel : Aluminum
14. Front and rear spring
15.Speed: 18 - 20 kilometers/h
16.Transmission: chain
17. Qty: 84pcs/20, 168pcs/40, 238pcs/40HQ

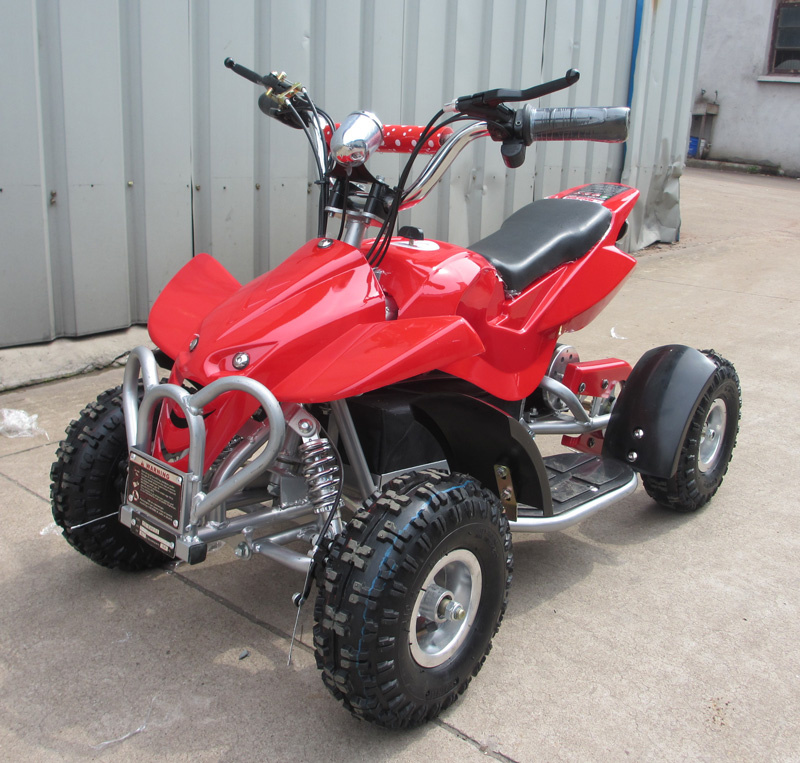

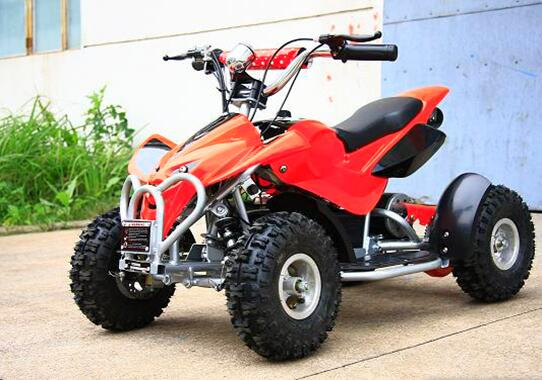

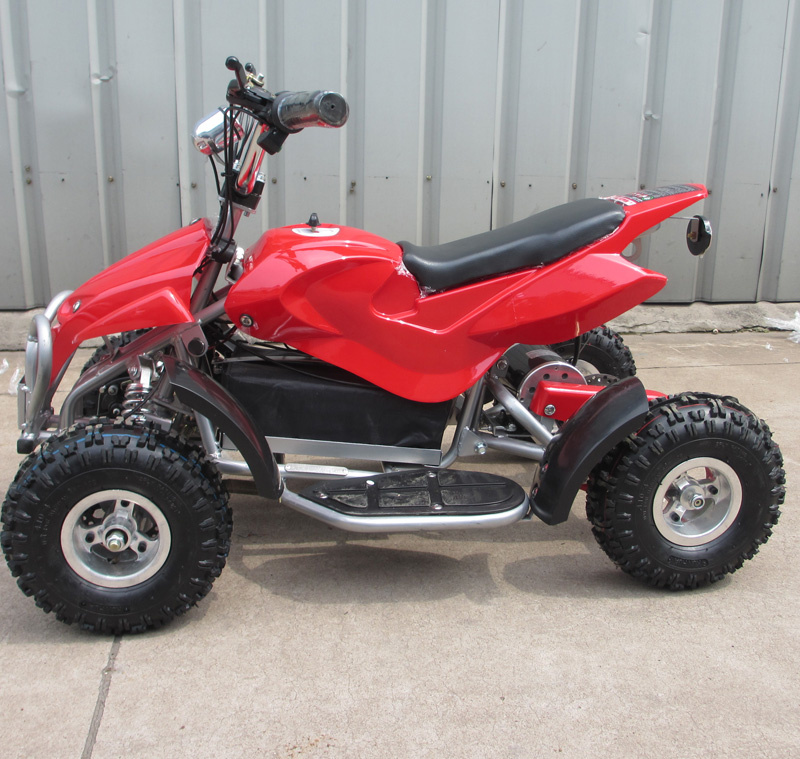

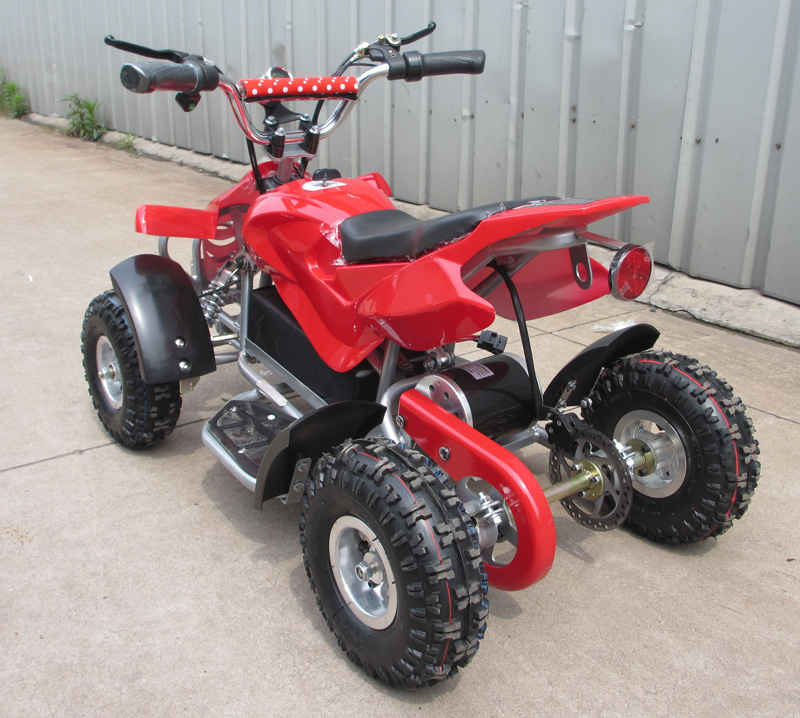

The details of kids electric quad:
