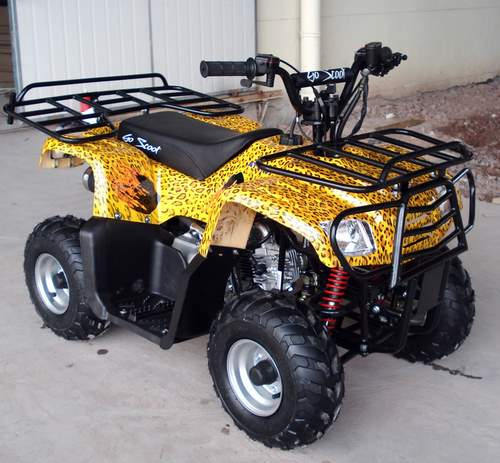

50/70/90CC ATV for Kid (QY50ATV-H)

Specifications

Prod Model:	QY50ATV-H

Product Description

1) Engine type: single cylinder, 4-stroke, air-cooled
2) Starting system: electric
3) Maximum power: 2.3kW/7,000r/min
4) Maximum speed: 40km/h
5) Ground clearance: 80
6) Transmission system: chain
7) Braking method: rear disc
8) Climbing ability: 17
9) Tyre size: front: 145/70-6; rear:145/70-6
10) Cylinder bore stroke: 39.0 x 41.4mm
11) Displacement: 49ml
12) Seat height: 560mm
13) Min.turing radius: 2100mm
14) Max. loading: 75kg

15) Fuel: 93# mix of gasoline & oil
16) Rider capacity: 1
17) Methods of lubrication: oil mist
18) Cylinder: single cylinder
19) Wheelbase: 750mm
20) Product dimensions: 1230 x 710 x 830mm
21) Weight: 42kg

Packing:
Carton dimensions: 1160 x 740 x 660mm
42pcs/20ft;90pcs/40ft,120pcs/40hq
