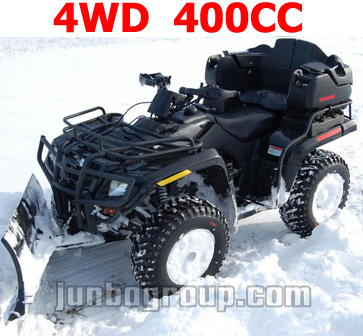

4x4 ATV Quad 4*4 4WD 400cc EEC Quad Bike (DR791)

Specifications

Prod Model:	DR791
Certification:	EEC
Displacement:	>400CC
Transmission Type:	Automatic
Structure:	Multi-door
Engine Type:	4 Stroke
Transmission System:	Shaft Drive

Product Description

Pls take your time to browse our web site for more information about this product.

Engine: 4 stroke, Single Cylinder, 179F
Drive system: 4WD, Shaft Drive
Efficient Capacity: 359ml
Engine oil type: SAE 15W-40S
Max Power: 14KW/5500rpm
Max Torque and Rotate Speed: 24N. M/4000r/min
Compression Ratio: 8.8: 1
Cooling System: Air Cooled + Oil cooled
Starter: Electric Start/Hand-pull
Ignition means: DCDI
Battery: 12V, 14ah
Gearshift Mode: Semi-automatic, five speed, one neutral with inside reverse gear
Steering angle: 36
Brakes: Disk/Disk (Front/Rear)
Wheel Base: 1320 mm
Distance between front wheels: 820mm
Distance between rear wheels: 830mm
Ground Clearance: 280mm
Seater height: 920 mm
Front Wheel Size: 25x8-12'
Rear Wheel Size: 25x10-12'
Products size(LxWxH): 200x115x138cm
Tank Capacity: 13L
Economical oil consumption(L/100km): ≤ 5
Max Speed: 80km/h
Gross Weight/Net Weight: 306kg/260kg

Conveyance:
Qty/20' GP: 10 units
Qty/40' HQ: 34 units
