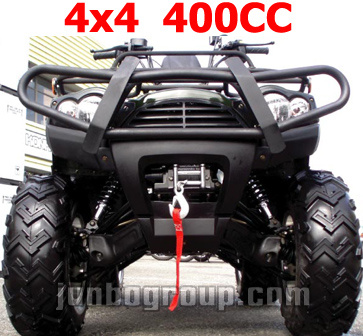

4x4 400CC Quad, Quad Bike 4*4 4wd ATV with CE (DR790)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR790 |
|---|---|
| Certification: | EEC |
| Displacement: | >400CC |
| Transmission Type: | Automatic |
| Structure: | Two Side Doors |
| Engine Type: | 4 Stroke |
| Transmission System: | Shaft Drive |
Product Description
Pls take your time to browse our web site for more information about this product.Engine: 4 stroke, Single Cylinder, 179F
Drive system: 4WD, Shaft Drive
Efficient Capacity: 359ml
Engine oil type: SAE 15W-40S
Max Power: 14KW/5500rpm
Max Torque and Rotate Speed: 24N. M/4000r/min
Compression Ratio: 8.8: 1
Cooling System: Air Cooled + Oil cooled
Starter: Electric Start/Hand-pull
Ignition means: DCDI
Battery: 12V, 14ah
Gearshift Mode: Semi-automatic, five speed, one neutral with inside reverse gear
Steering angle: 36
Brakes: Disk/Disk (Front/Rear)
Wheel Base: 1320 mm
Distance between front wheels: 820mm
Distance between rear wheels: 830mm
Ground Clearance: 280mm
Seater height: 920 mm
Front Wheel Size: 25x8-12'
Rear Wheel Size: 25x10-12'
Products size(LxWxH): 200x115x138cm
Tank Capacity: 13L
Economical oil consumption(L/100km): ≤ 5
Max Speed: 80km/h
Gross Weight/Net Weight: 306kg/260kg
Conveyance:
Qty/20' GP: 10 units
Qty/40' HQ: 34 units
