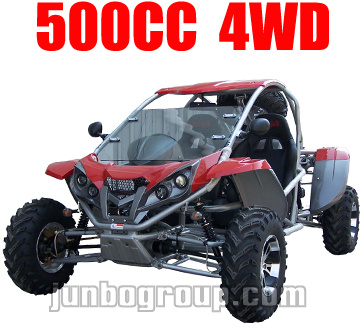

4WD Go Kart, Buggy 4x4 500cc with Shaft Drive Go Cart (DR680)

Specifications

Prod Model:	DR680
Start-up:	Electric
Transmission:	Shaft
Displacement:	>400CC
Certification:	EEC

Product Description

Pls take your time to browse our web site for more information about this product.

Engine type: 500CC, water cooled, 4-stroke
Single-cylinder, with inner reverse gear
P Max.: 24km/6500r/min
T Max.: 38.8N. M/5500r/min
Cylinder bore: 87.5mm
Start mode: Electric
Power sourc: Battery 12V18HA
Displacement: 493 ML
Comperession ratio: 10: 01
Ignition: CDI
Wheel base: 2340 mm
Rider: Double
N. W.: 450kgs

Performance
1) Top speed: 80km/h
2) Starting: <15s
3) Parking trig: Mechanical lock
4) Fuel: RQ-90(leadless)
5) Lubricate oil brand: SAE15W-40/SF
6) Gas tank capacity: 16L
7) Engine oil capacity: 2.2L
8) Headlight: 12V/35W
9) Tailight: 12V21W/5W
10) Climb capacity: 18 degree

Chassis
1) Distance between wheels: (F/R)1, 340mm/1, 340mm
2) Seat distance: 450mm
3) Front brake hydraulic DISC brake by foot control
4) Rear brake: Hydraulic DISC brake by foot control
5) Tire(F/R): 25X8-12' / 25X10-12'

Transmission
1) Transmission: Shaft (4X4)
2) Clutch: AVT

Available options
1) Wheel hub: Aluminum
2) Front /rear tire: Road tire, cross-country tire

Others
1) Frame: Steel tube
2) Front suspension: Double A arm
3) Rear suspension: Swing type

Packing:
Steel frame and carton
Carton dimensions: 3, 000 x1, 680 x 880 mm

Conveyance:
Qty/20' FCL: 4PCS
Qty/40' HQ: 12PCS
