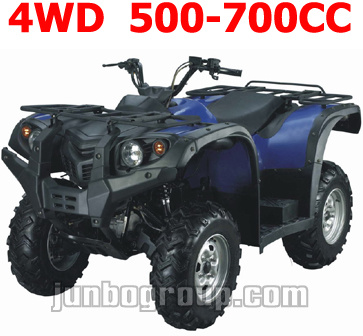

4WD 500cc / 600cc / 700cc 4x4 Quad Bike 4*4 (ATV DR797B)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR797B |
|---|
Product Description
Pls take your time to browse our web site for more information about this product.ENGINE Type: 700/600/500cc, Water cooled, 4-stroke, 1-cylinder
Bore x Stroke:
700cc: 102mm x 84mm
600cc: 96mm x 84mm
500cc: 84.5mm x 84mm
Max. Torque:
700cc: 27.5N. M/4500min
600cc: 28.3N. M/5000min
500cc: 26.7N. M/5500min
Max. Power:
700cc: 14.3kw/5500min
600cc: 13.5kw/5500min
500cc: 13.0kw/5500min
Compression Ratio:
700cc: 9.2: 1
600cc: 8.5: 1
500cc: 8.0: 1
Carburetion:
700cc: PD42J/KINZO
600cc: PD42J/KINZO
500cc: PD33-A/KINZO
Max. Speed: 80km/h
Ignition: CDI
Starting: Electric/pull
Transmission: L-H-N-R-P
Drive Train: Axle
Front Suspension: Independent double swing arm
Rear Suspension: Independent double swing arm
Front Brake: Dual ventilated hydraulic disc
Rear Brake: Ventilated Hydraulic disc
Front Tires: AT25 x 8-12' radial
Rear Tires: AT25 x 10-12' radial
Seat Height: 960mm
Wheelbase: 1360mm
Ground Clearance: 275mm
Fuel Capatity: 18L
Dry Weight: 320kg
L x W x H: 2235 x 1280 x 1225mm
Conveyance:
Qty/20' FCL: 8PCS
Qty/40' FCL: 18PCS
Qty/40' HQ: 27PCS
