Home Yongkang Jinyi Vehicle Co., Ltd. 49cc Mini Quad ATV

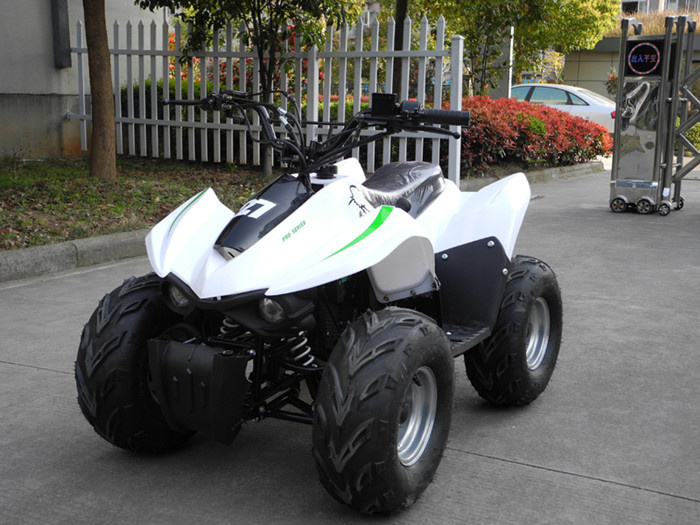

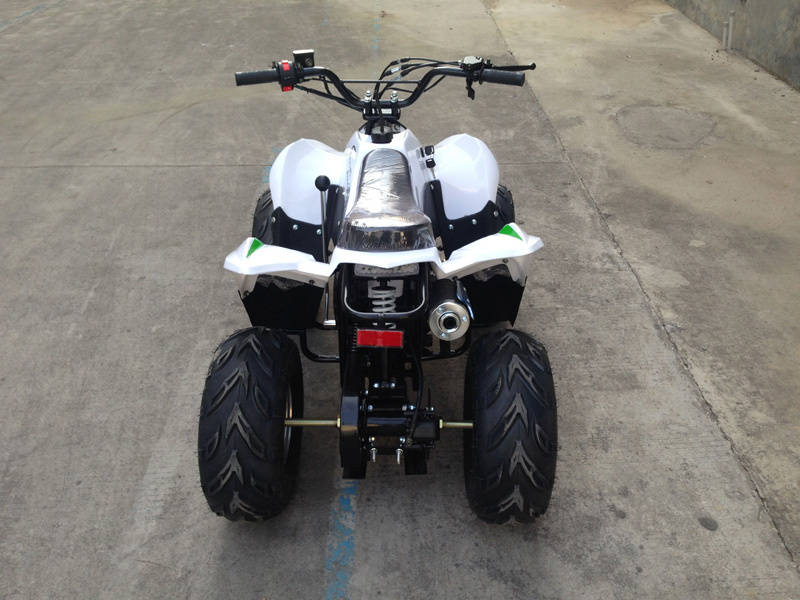

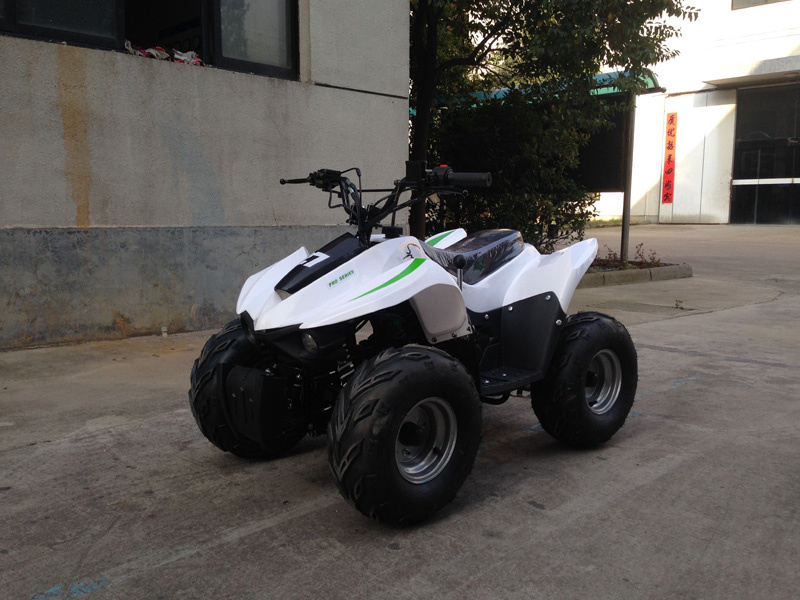

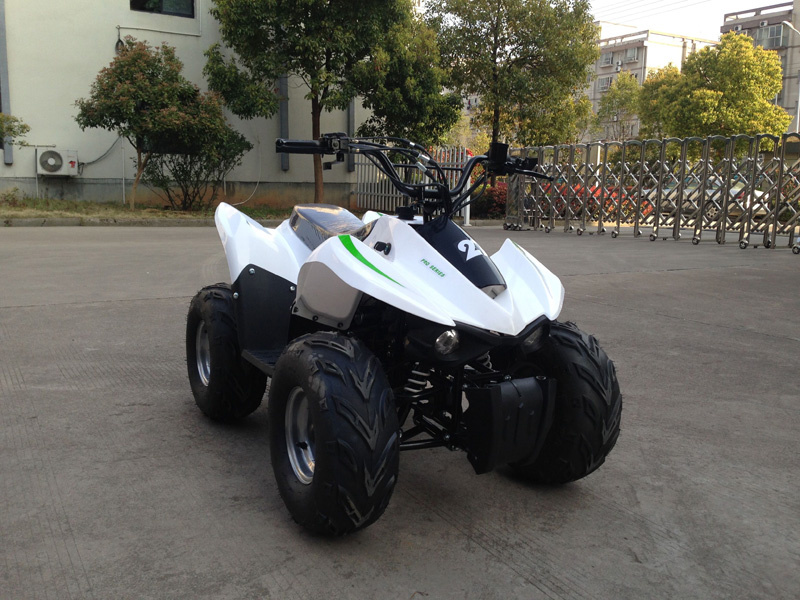

49cc Mini Quad ATV
| Price: | US $ 289-315/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | T/T |
| Prod Model: | JY50CC-01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Torque: | 7.2/5000 |
| Max Power: | 5.0/8000 |
| Ignition Type: | Cdi |
| Front Tire Spec: | 145/70-6" |
| Rear Tire Spec: | 145/70-6" |
| Ground Clearance: | 60mm |
| Max Speed: | 40km/H |
| Clutch: | Automatic |
| Product Dimensions: | 123*74*84cm |
| Packing Size: | 112*64*64cm |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 50CC |
| Condition: | New |
| Brand: | Jinyi |
| Transmission Type: | Electric Start |
| Brake Type: | Front Drum/ Rear Disc |
Product Description
49cc mini quad atv| Engine: | 49cc,4-stroke,1-cylinder,air cooled |
| Engine Displacement(ml): | 49 |
| Bore x Stroke(mm): | 52.4x49.5 |
| Max Power(km/(r/min)): | 5.0/8000 |
| Max Torque(r/min): | 7.2/5000 |
| Minimum fuel consumption(g/kW.h): | 367 |
| Engine Compression Ratio: | 9.1:1 |
| Starting: | electric start |
| Transmission: | chain driven |
| Brake Type(front/Rear): | drum/disc |
| Brake Distance(m/30km): | 5 |
| Clutch: | Automatic |
| Shifting Gear: | 3F/N/R |
| Seat Height(mm): | 560 |
| Climbing Degree: | 35 |
| Top Speed(km/h): | 40 |
| Minimum Ground Clearance(mm): | 60 |
| Tire(front/rear): | 145/70-6 |
| Cover Material: | PP |
| Available Color: | white,black,red,yellow,blue |
| Product Dimensions: | 1230 x 740 x 840mm |
| Packing Dimensions: | 1120x640x640mm |
| N.W.: | 90kg |
| G.W.: | 100kg |
| Qty/20' FCL: | 54pcs |
| Qty/40' HQ: | 140PCS |
Yongkang JinYi Vehicle Co.,Ltd
Tel: 0086-579-89289251
Fax: 0086-579-87211712
ATT:Lucy
Website: www.jinyi-motor.com
Alibaba: http://chinajinyi.en.alibaba.com/
Made in China: http://ykjinyi.en.made-in-china.com/
Yongkang Jinyi Vehicle Co., Ltd., specialized in ATV, our company located in Yongkang, Zhejiang province, Our company will pursue the professional spirit, good service, wish to March forward hand in hand with old and new customers, to cooperate and create bright future in common. Welcome to contact us for details!
We a professional manufacture of ATV, Trike and off-road vehicle. Jinyi has a dynamic and passionate team, strong technology department support independent research and development capabilities. Professional sales department provide timely and effective communication, and good after-sales service. Quality control department ensure high quality for each vehicle. Jinyi strictly implement the ISO9001: 2008 standard. Continuous innovation allows us to continue the development.
We a professional manufacture of ATV, Trike and off-road vehicle. Jinyi has a dynamic and passionate team, strong technology department support independent research and development capabilities. Professional sales department provide timely and effective communication, and good after-sales service. Quality control department ensure high quality for each vehicle. Jinyi strictly implement the ISO9001: 2008 standard. Continuous innovation allows us to continue the development.
