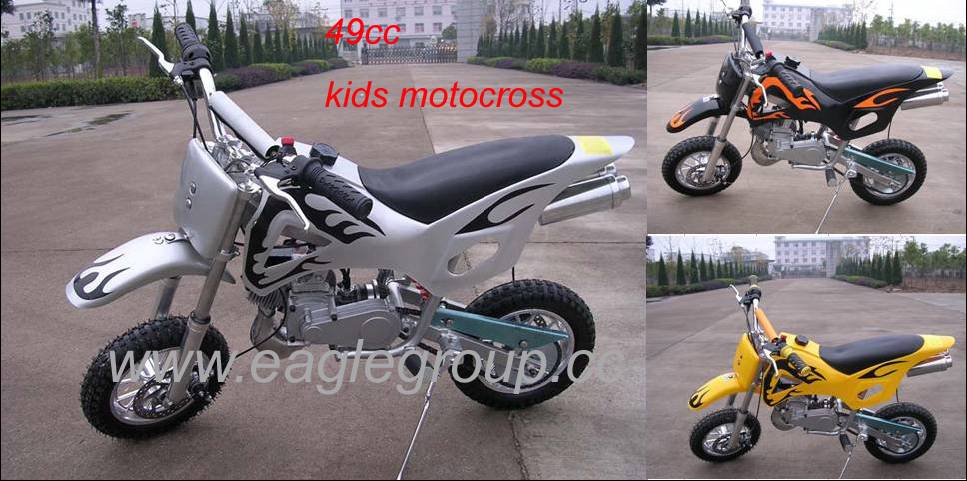

Home Eagle Industry and Trade Co., Ltd. 49cc Kids Dirt Bike (YG-D1)
| Prod Model: | YG-D1 |
|---|
Product Description
SpecificationsEngine Type: 2 stroke, single cylinder, air-cooled
Final Drive: Chain drive
Bore and stroke: 40.0*32.0mm
Goal consumer: >=14 years old
Piston Displacement(cc): 47cc
Compression Ratio: 7.6: 1
Maximum Power(kw/r/min): 1.45kw/7000rpm
Max Torque(N. M/r/min): 2kw/7000rpm
Starter Sytem: Manual start
Trasmission: Chain drive through automatic clutch: 11t/54t
Packing Dimension LxWxH(mm): 1130x290x760
Wheel Base(mm): 990
Front Suspension: Telescopic fork
Rear Suspension: Mono shock
Seat Height(mm): 540
Ground Clearance(mm): 170
Brake(Front/Rear): Hydraulic disc/hydraulic disc
Tire, Front: 12x2.75 inches
Tire, Rear: 12x2.75 inches
Ignition Type: CDI
Fuel Tank Capacity (L): 1L
Fuel/oil ratio: 25: 1
Max Speed(km/h): 40km/h
Max. Load Capacity(kg): 80
NW(kg): 22
GW(kg): 24
Quantity of Loading: 118pcs/ 20'ft; 250pcs /40'ft; 280pcs/ 40'hq
