Specifications
Product Description

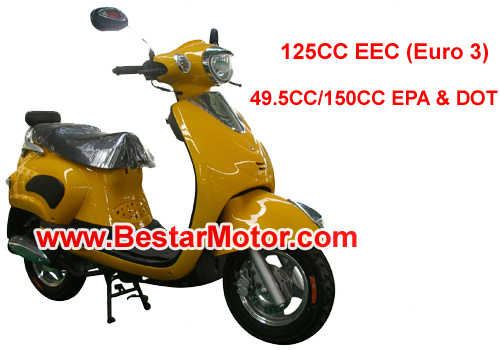

RS-811Displacement: | 49.5cc | 150cc |
Product size (mm): | 1800 X 690 X 1120 | |
Wheelbase (mm): | 1210 | 1250 |
Seat Height (mm): | ||
Ground clearance (mm): | 100 | 105 |
Max. load (kg): | 93 | |
Engine style: | 4 stroke, air cool | |
Bore X Stroke (mm): | 39 X 41.4 | 56.5 X 57.8 |
Max Power (Kw/r/min): | 3.0/7500 (500) | 7.15/7500 (500) |
Rated Power (Kw/r/min): | 2.4/7500 (500) | 7.0/7500 (500) |
Max Torque (N.m./r/min): | 2.5/6000 (500) | 8.5/6000 (500) |
Starting: | Kick/Electric | |
Ignition: | CDI | |
Tank (L): | 5.6 | |
Rim (Front / Rear): | 2.50-10 / 2.50-10 | |
Tire (Front / Rear): | 3.50-10 / 3.50-10 | |
Front brake: | Disc by hand | |
Rear brake: | Drum by hand | |
Battery: | 12V/5Ah | 12V/7Ah |
Max Speed (Km/h): | 50 | 90 |
Fuel consumption (L/100km): | 2.0 | 2.9 |
Net weight (kg): | 92 | 102 |
Gross weight (kg): | 117 | 127 |
Carton size (cm): | 168X58X85 (front wheel, handle bar, rear rack, front fender are not assembled) | |
Container capacity: | 26pcs/20’GP, 56pcs/40’GP, 84pcs/40’HC | |
Option: | Trunk (not free) |
