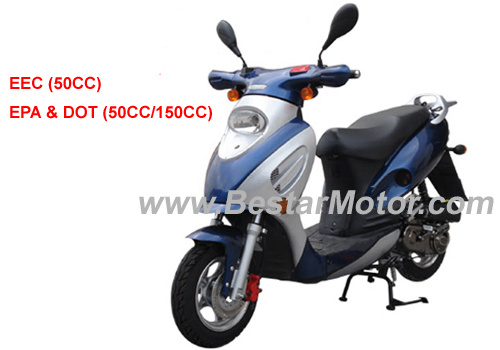

Home Ningbo Bestar Co., Ltd. 49.5CC/125CC/150CC Scooter (RS-804)
Specifications
Product Description
RS-804| Displacement: | 49.5cc | 150cc |
| Product size (mm): | 1815 X 675 X 1035 | 1815 X 675 X 1080 |
| Wheelbase (mm): | 1300 | 1340 |
| Seat Height (mm): | 760 | |
| Ground clearance (mm): | 100 | 105 |
| Max. load (kg): | 93 | |
| Engine style: | 4 stroke, air cool | |
| Bore X Stroke (mm): | 39 X 41.4 | 56.5 X 57.8 |
| Max Power (Kw/r/min): | 3.0/7500 (500) | 7.15/7500 (500) |
| Rated Power (Kw/r/min): | 2.4/7500 (500) | 7.0/7500 (500) |
| Max Torque (N.m./r/min): | 2.5/6000 (500) | 8.5/6000 (500) |
| Starting: | Kick/Electric | |
| Ignition: | CDI | |
| Tank (L): | 7.8 | |
| Rim (Front / Rear): | 2.50 X 10 / 2.50 X 10 | |
| Tire (Front / Rear): | 80/100-10 / 80/100-10 | 3.50-10 / 3.50-10 |
| Front brake: | Disc by hand | |
| Rear brake: | Drum by hand | |
| Battery : | 12V/7Ah | |
| Rear shock | Single | Double |
| Max Speed (Km/h): | 50 | 90 |
| Fuel consumption (L/100km): | 2.0 | 2.9 |
| Net weight (kg): | 85 | 109 |
| Gross weight (kg): | 110 | 134 |
| Carton size (cm): | 170X58X86 (front wheel, handle bar, rear rack, rear fender, front fender, front plastic cover are not assembled) | |
| Container capacity: | 26pcs/20’GP, 56pcs/40’GP, 84pcs/40’HC | |
| Option: | 125cc version(EEC), Trunk (not free) | |
