Specifications
Prod Model: |
HP-E150 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: |
Cargo and Passenger |
Driving Type: |
Electric |
Certification: |
CE |
Tricycle Wheel Distance: |
≥1110mm |
Body Type: |
Open |
Displacement: |
No Pollution |
Product Description
Specifications
With 3 wheels;
500W, limit speed 25km/h;
Confortable cushion;
Safe for the Old.

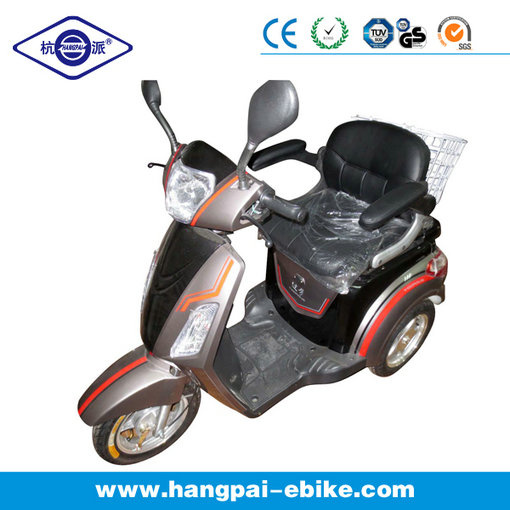

HP-E150(NEW) |
Packing size |
1620x720x1020(mm) |
Motor power |
48V 500W brushless motor |
Battery type |
Lead acid free-maintianing battery 48V 20Ah |
Battery weight |
28.2kgs |
Controllor |
48V 25A intelligent brushless |
Charger type |
Input: AC 110-220V Output: DC +56V 2.5A |
Charging time |
4 to 8hours |
Max speed |
25km/h EU standard; 32km/h North America |
Range per charge |
55km by throttle |
Max loading |
150kgs |
Bike weight |
80kgs with battery |
Brake system |
Drum brake for front& rear wheel |
Light system |
normal light for front& rear |
Tire size |
16" x3.0 |
Fork |
Hydraulic suspension |
Rear suspension |
Hydraulic& spring |
Alarm |
Alarm system |
Container loading |
22pcs/20" GP; 46pcs/40" HQ |
