Specifications

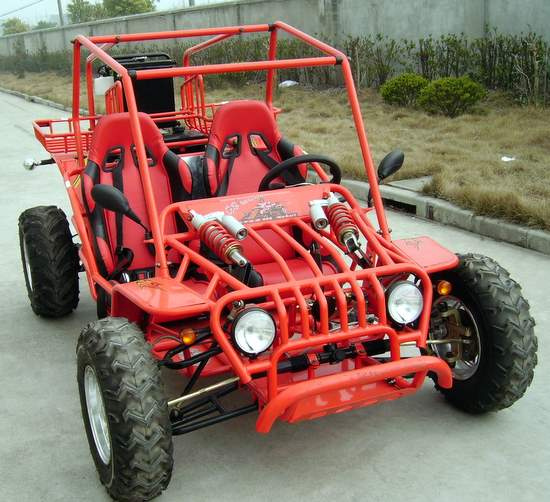

Product Description
DIMENSIONS
Overall Length 2830mm, Overall Width 1600mm ,Overall Height 1580mm
Wheelbase 2210mm ,Front Track 1370mm ,Rear Track 1335mm ,Ground Clearance 220mm
ENGINE
Type water-cooled 4-Stroke
Engine capacity 400cc
Bore X Stroke 91mmX61 5mm
Displacement 400
Corrected compression ratio 11 2:1
Max out put power 23 kw/8000rpm
Max Torque 32Nm/6700N m/r/min
Starting Electric
Ignition C D I
Lubrication Force & Splash
Transmission Automatic(C V T system)
Spark plug DPR5EA-9(NGK)
Plug gap 0 6-0 8mm
Fuel type RQ90(unleaded)
Lubricate oil SAE15W-40/SF
CAPACITIES
Maximum load Double seats/200Kg
Fuel tank 16L
Engine oil 1180mL
Starting <10s
Climbing 20 -25
Battery 12V14Ah
Head Light 12V 35W
Tail Light 12V 21W/5W
Fuse 9A
Brake Track 7m@40km/h
Top speed 95KM/h (or limited as customers require)
CHASSIS
Front, Rear brake Hydraulic disc, left foot control
Front tire AT24X8-14
Rear tire AT24X10-14
Front Suspension Independent Dual A-Arm
Rear Suspension Independent Arm/Double Oil Damped Shock
Restraint System Dual 4-point Harness
Final Drive Shaft Drive
TIRE PRESSURE
Front 250KPa
Rear 250KPa
Packing:
Carton dimensions: 2500 x 1670 x 870mm
N W : 415kg
G W : 435kg
Conveyance:
Qty/40' HQ: 15pcs
Qty/20' GP: 4pcs
